6 ways configurable dc bus bar for mega fuses. From 12V up to 70VDC

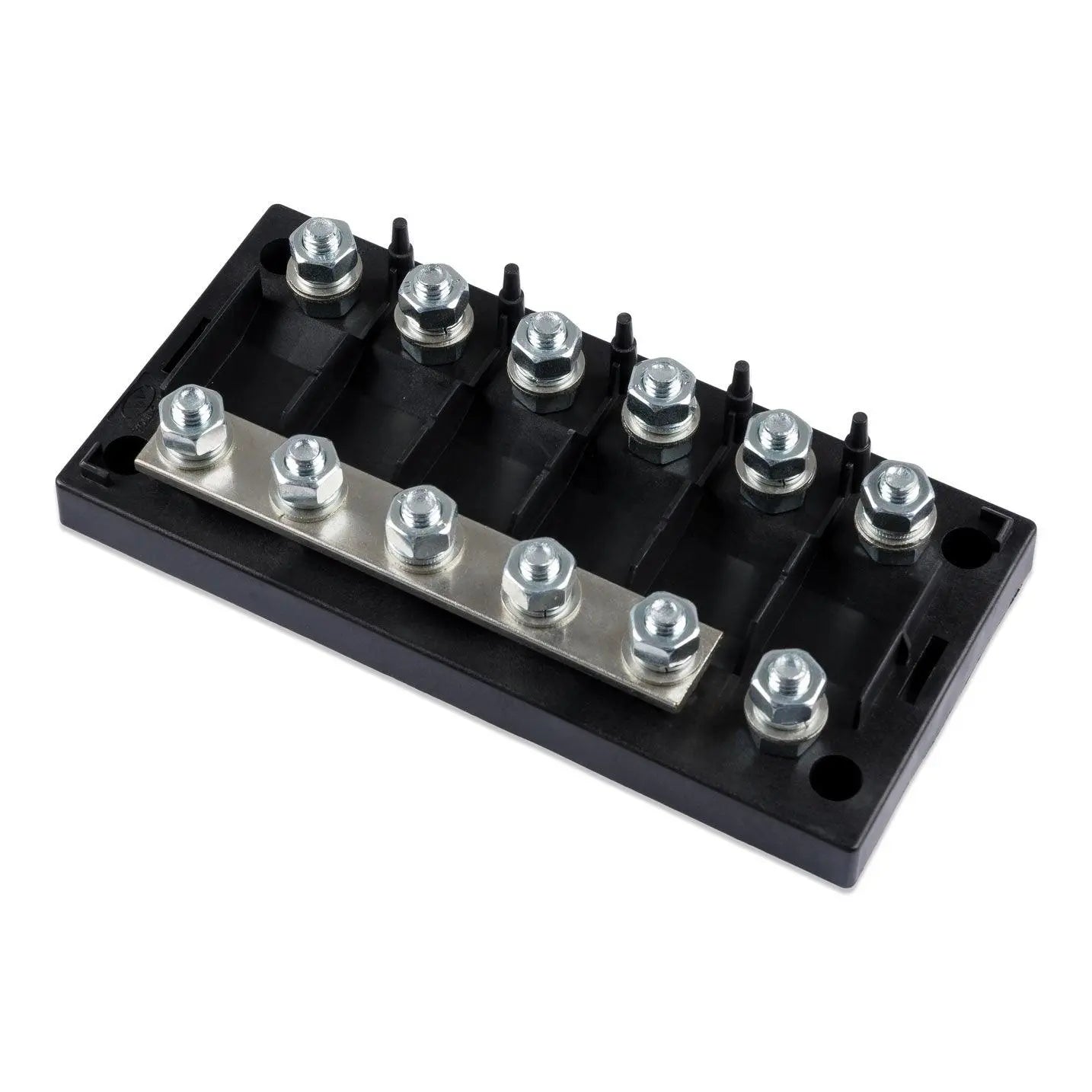

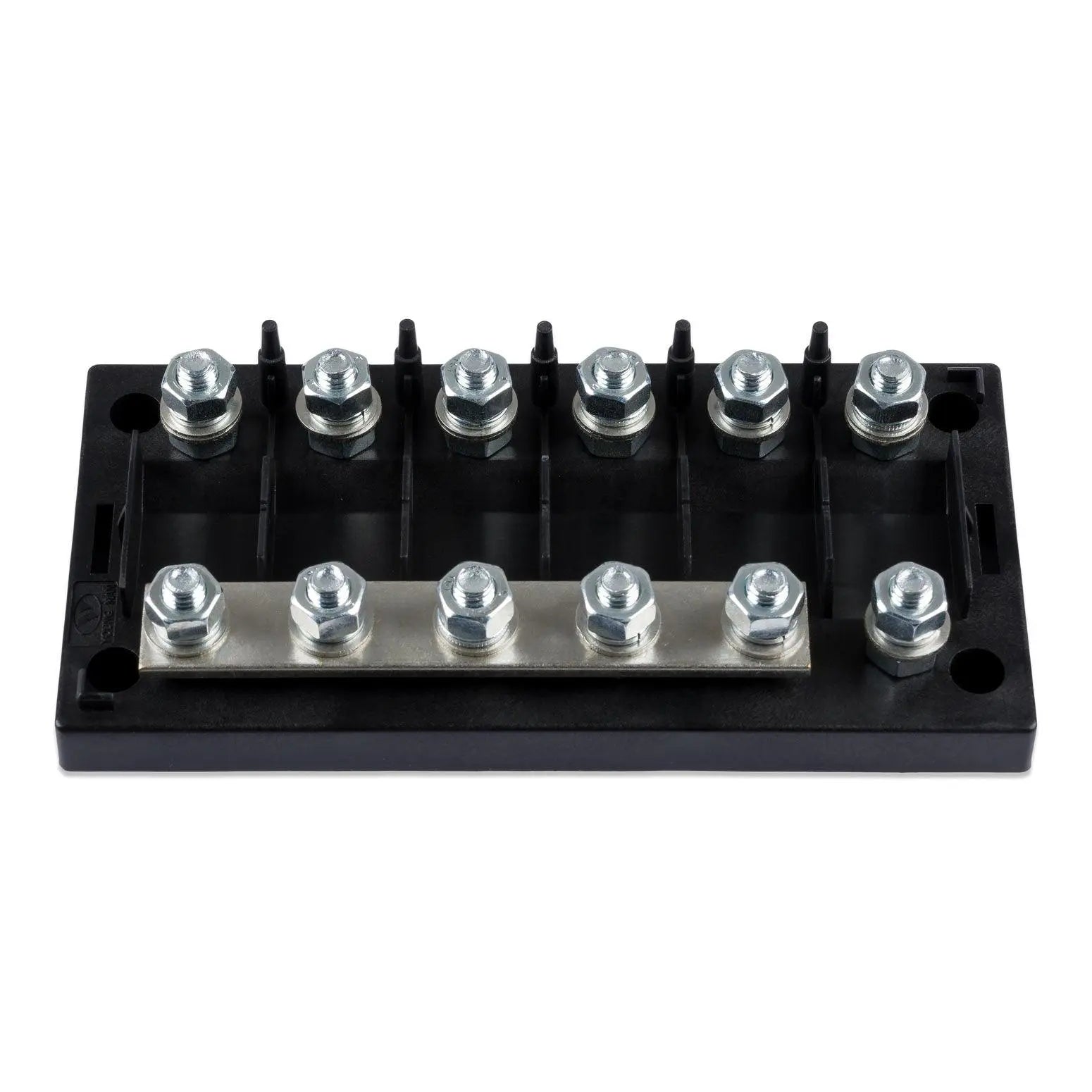

Fuse holder 6-way for MEGA fuses

• Max. current 250 A Max.
• Voltage 70 VDC Terminal
• Diameter 5/16 inch / 8 mm
• Terminal height 0.67 inch / 14 mm
• Terminal material Galvanised steel Hex nut material
• Galvanised steel Recommended torque 60 lbf·inch / 7 N·m
• Busbar strip material Tin-plated copper (3 x 18 mm)

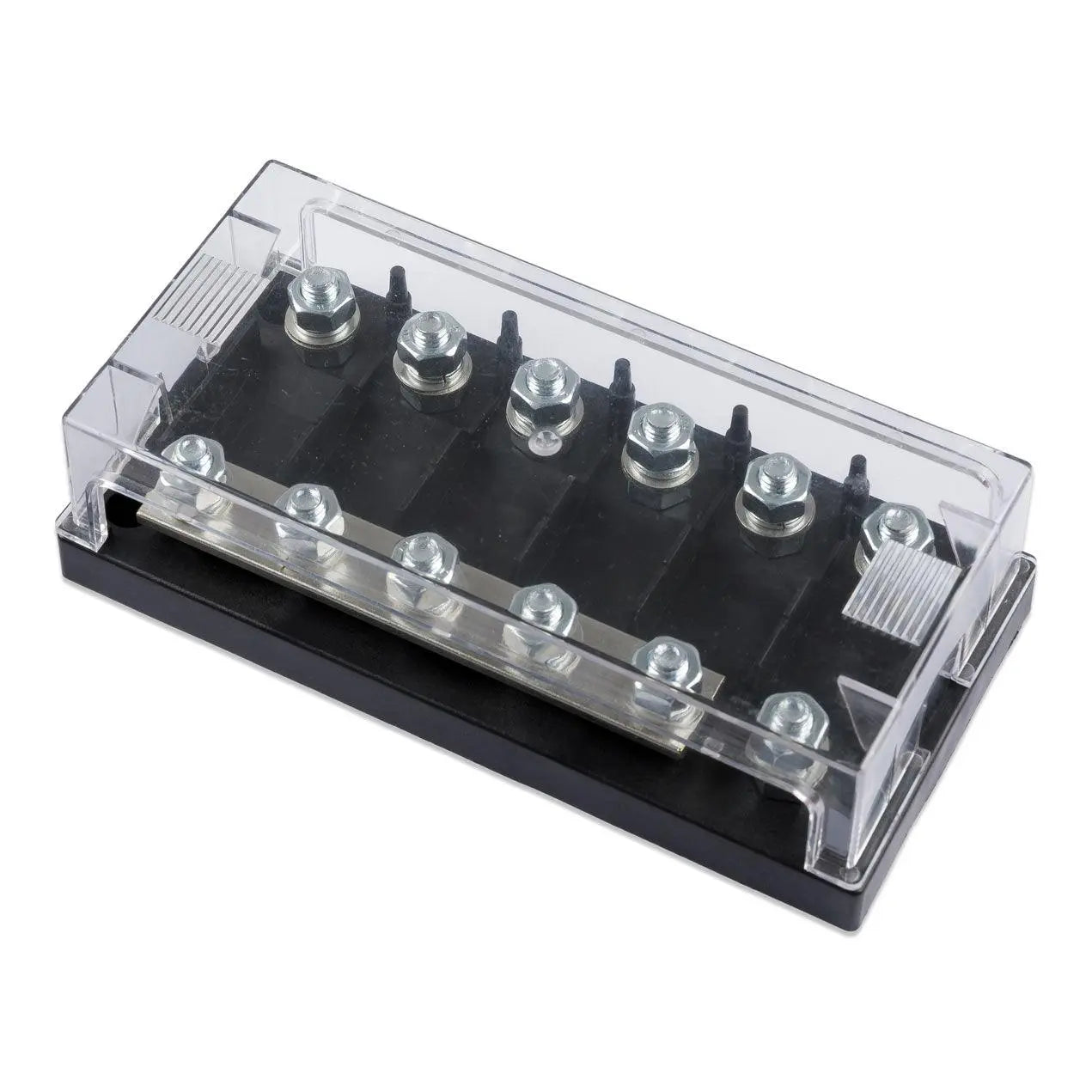

• Base material ABS, black, UL 94 V-0 Cover material Clear Polycarbonate
• UL 94 HB Weight 1 lb / 0,45 kg
• Dimensions (hxwxd) (with cover) 2.0 x 7.2 x 3.5 inch 50.9 x 181.5 x 88 mm
