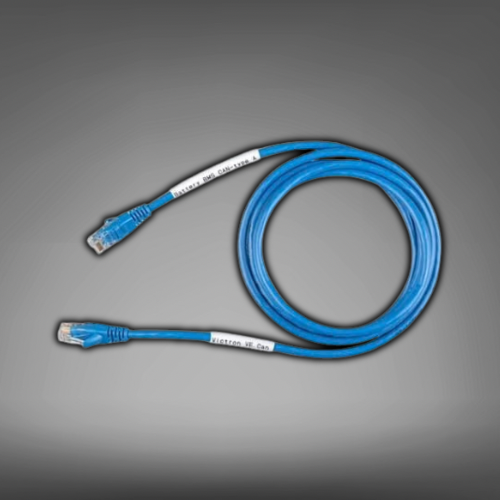

VE.Can to CAN-bus BMS Cable Type B
VE.CAN to CAN-bus BMS (Type B) cable is used to connect non-Victron CAN-bus enabled batteries to the Victron system.
Common Battery Types that use Type B
-
AXIstorage 7S/9S
-
BMZ
-
BSLBATT Lithium battery
-
LG Chem Resu
-
Pylontech US2000/US3000/UP2500
-
Solar MD BMS EX
-
Freedom Won eTower
Type B Pin Out
| Function | Victron VE.Can side | Battery side |
|---|---|---|
| GND | Pin 3 | Pin 2 |
| CAN-L | Pin 8 | Pin 5 |
| CAN-H | Pin 7 | Pin 4 |
