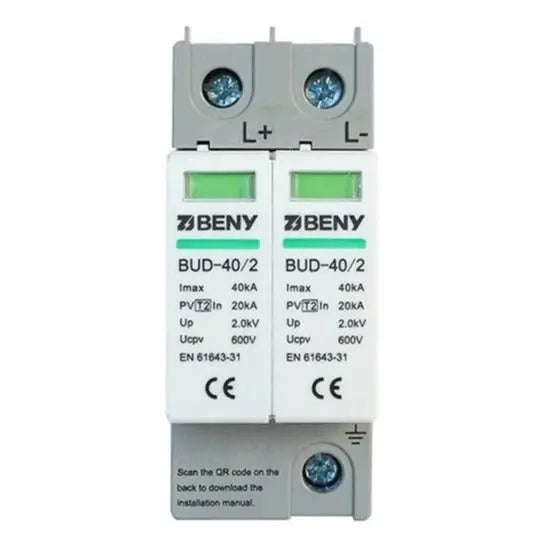

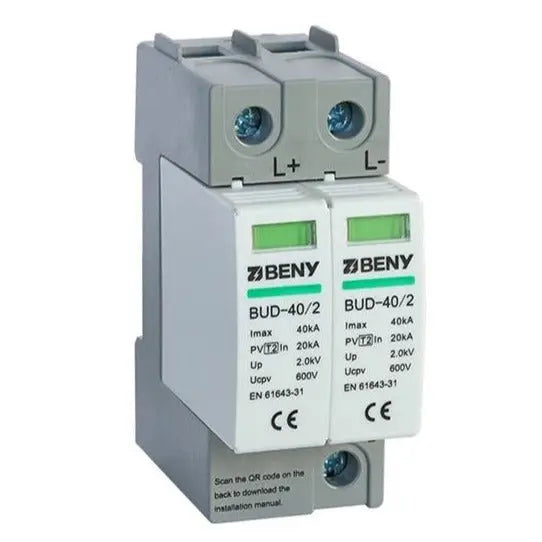

Surge Protection Device Type 2 Solar Panel 600V And Inverters
£29.88
In stock
The inverters and solar panels must be protected against surge voltages. The PV-Guard-600 is rated to 40kA and 600V, ideal for solar off-grid inverters.
The device is compliant with PV standard EN50539-11. The din rail mounted SPD is widely used in solar combiner boxes to protect the solar panels and inverters from surges in voltage and lightning. The protection method is a high-energy Varistor.
The risk of over-voltage is direct (lightning impact) or indirect effect (over-voltage on solar panels, inverter and other connections.
DC network: surge protectors are necessary, sometimes mandatory, on the continuous network in between the modules and the PV inverter
Technical Parameters
| Poles | 2 Poles , Positive Vdc, Negative Vdc |
| Open circuit voltage | 600V. Max Operating: 630V |
| Nominal DIscharge Current: | 20kA |
| Maximum Discharge Current | 40kA |
| Voltage Protection Level Up | <3.8kV |
| Response Time | <25ns |
| Operating State/Fault Indication | Green / Red |
| Standards | IEC-61643-1 & 61643-11 & EN50539-11 |
| Dimensions | 84mm x 53.5mm |
| Wire Cables | Flexible 4-16mm2 |
