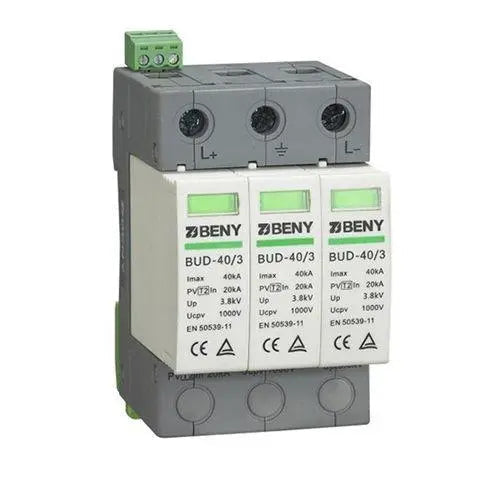

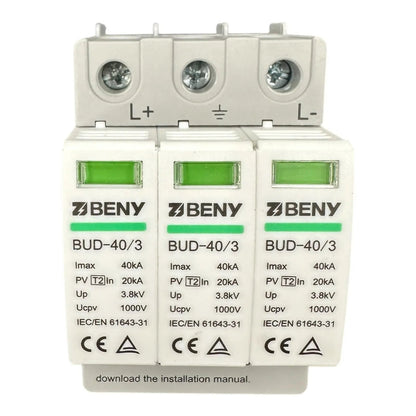

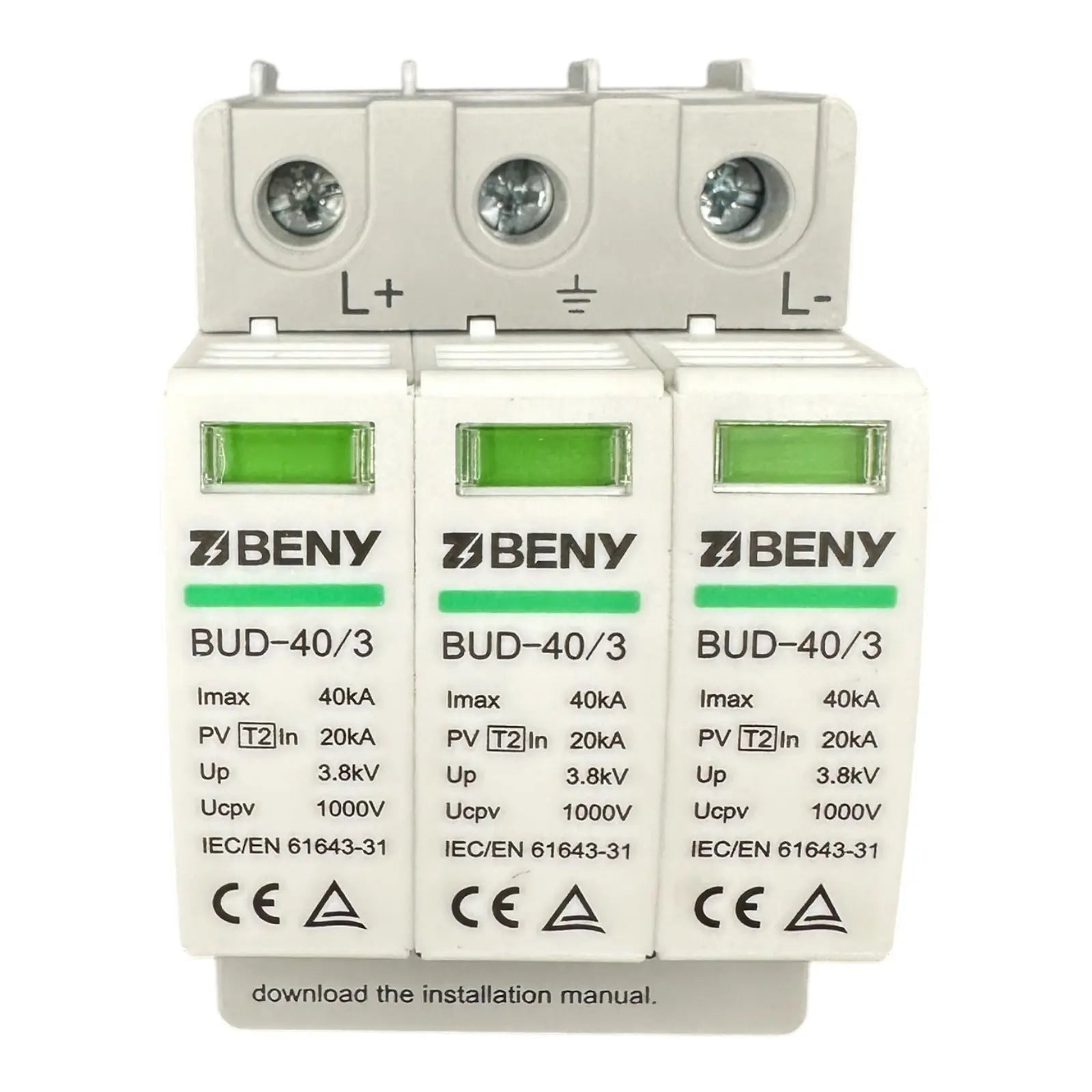

Surge Protection Device Type 2 Solar Panel 1000V DC

Surge Protection Device Type 2 Solar Panel 1000V DC

The inverters and solar panels must be protected against surge voltages. The PV-Guard-1000 is rated to 40kA and 1000V, ideal for low-voltage solar off-grid inverters.

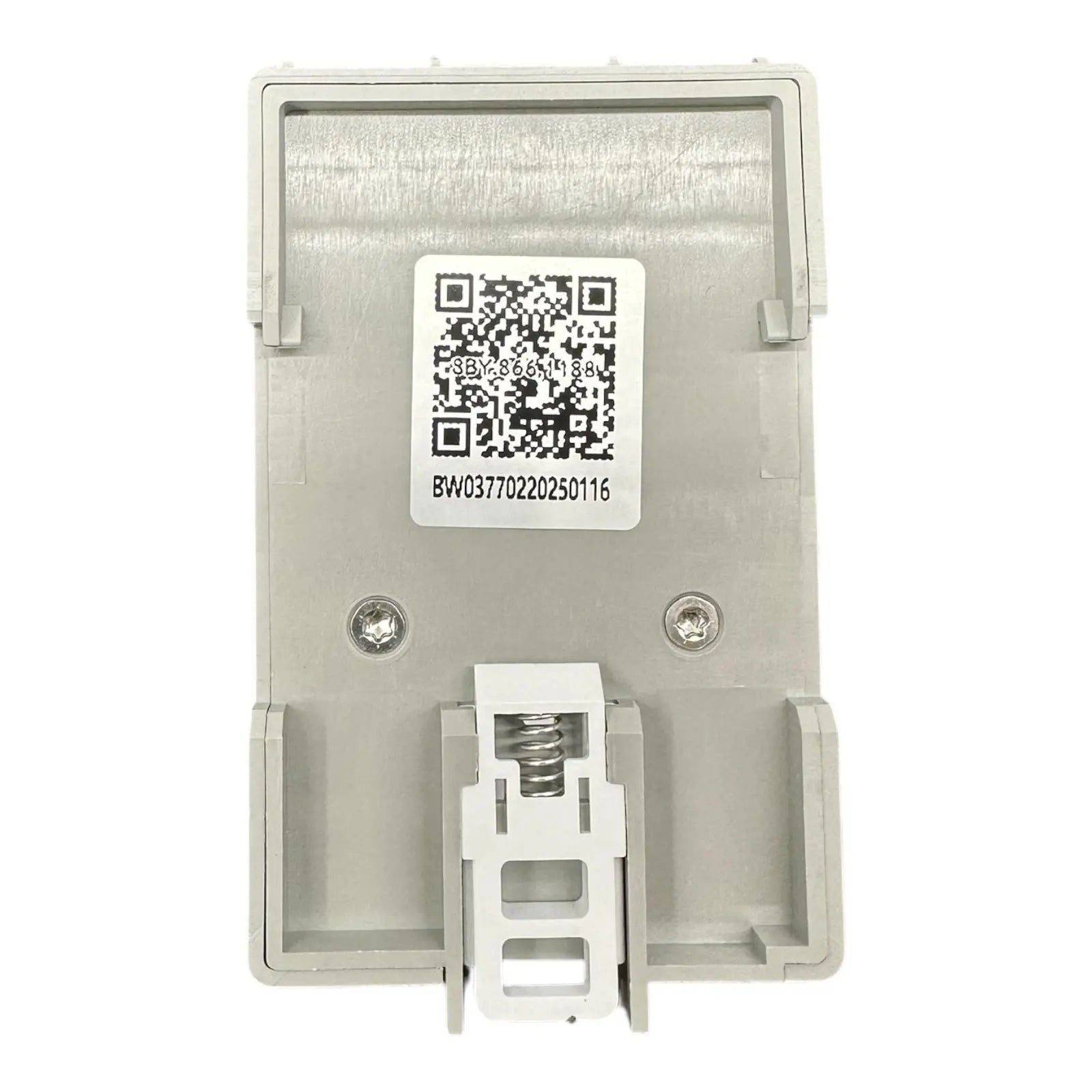

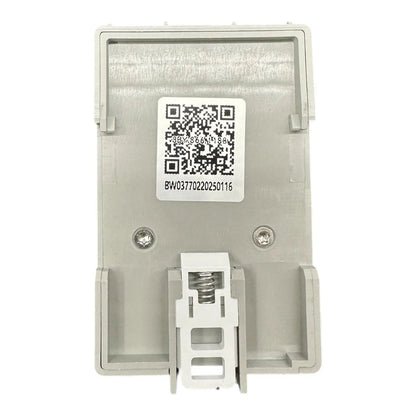

The device is compliant with PV standard IEC/EN 61643-31. The din rail mounted SPD is widely used in solar combiner boxes to protect the solar panels and inverters from surges in voltage and lightning. The protection method is a high-energy Varistor.

Photovoltaic installations require large surfaces and for that reason, they are exposed to lightning effects and surges. With surge protection devices we avoid failures and maximize profit and production.

Technical Parameters

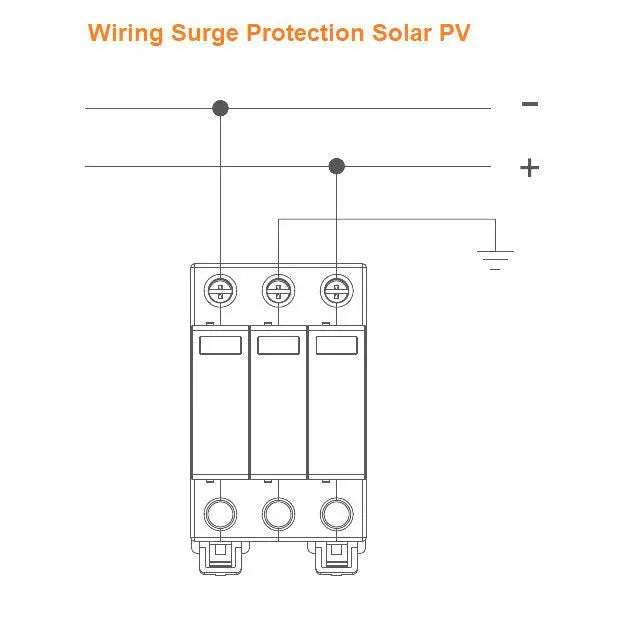

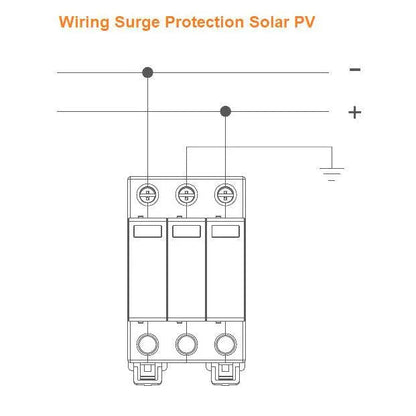

Poles  3 Poles, Positive Vdc, Negative Vdc and Earth
Open circuit voltage 1000 V. Max Operating Volts: 1060V
Nominal DIscharge Current:  20kA
Maximum Discharge Current 40kA
Voltage Protection Level Up <3.8kV
Response Time <25ns
 Operating State/Fault Indication  Green / Red
 Standards  IEC-61643-1 & 61643-11 & EN50539-11
 Dimensions  84mm x 53.5mm
 Wire Cables  Flexible 4-16mm2
£32.40 GBP
£32.40 GBP
Sale Sold out
View full details

Customers are saying

0.00 ★ (0)
Verified

Did you know our shirts are rarely returned? The fit is just right – see for yourself!

Beny

Surge Protection Device Type 2 Solar Panel 1000V DC

£32.40
In stock
The inverters and solar panels must be protected against surge voltages. The PV-Guard-1000 is rated to 40kA and 1000V, ideal for low-voltage solar off-grid inverters.

The device is compliant with PV standard IEC/EN 61643-31. The din rail mounted SPD is widely used in solar combiner boxes to protect the solar panels and inverters from surges in voltage and lightning. The protection method is a high-energy Varistor.

Photovoltaic installations require large surfaces and for that reason, they are exposed to lightning effects and surges. With surge protection devices we avoid failures and maximize profit and production.

Technical Parameters

Poles  3 Poles, Positive Vdc, Negative Vdc and Earth
Open circuit voltage 1000 V. Max Operating Volts: 1060V
Nominal DIscharge Current:  20kA
Maximum Discharge Current 40kA
Voltage Protection Level Up <3.8kV
Response Time <25ns
 Operating State/Fault Indication  Green / Red
 Standards  IEC-61643-1 & 61643-11 & EN50539-11
 Dimensions  84mm x 53.5mm
 Wire Cables  Flexible 4-16mm2
