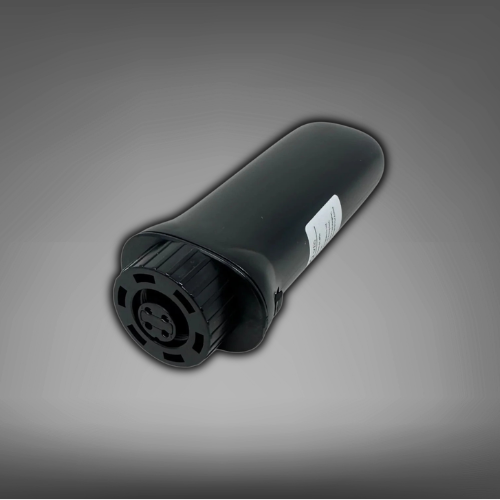

Solis S5-WiFi-ST WiFi Stick Data Logger (4-Pin)
Solis WiFi Stick for up to 10 Inverters (4-Pin Port) - S5-WiFi-ST
The Solis S5-WiFi-ST data logger connects your Solis inverter system to SolisCloud using your local WiFi network. Monitor performance, view clear real-time data, and troubleshoot remotely from anywhere, anytime. One logger can support up to 10 inverters via RS485 communication.
Key Features
- Connects Solis inverters to SolisCloud for remote monitoring and control
- Supports up to 10 inverters on one data logger (RS485 daisy-chain)
- Wireless connection to your router with dual-band WiFi (2.4GHz and 5GHz)
- Bluetooth nearby connection for setup and debugging

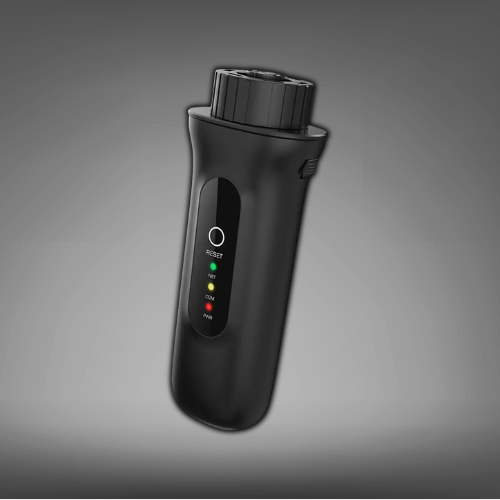

- Status indicator LEDs for quick visual checks
- RESET button for convenient troubleshooting and data resend
Specifications
| Supported device | Solis inverter |
| Max connected inverters | Up to 10 |
| Data collection interval | 5 minutes |
| Status indicator | 3 LED indicator lights |
| Communication interface | External 4-pin port |
| Wireless communication | 802.11a/b/g/n, 2.412 to 2.484GHz, 5.150 to 5.350GHz, 5.725 to 5.850GHz |
| Near end communication | Bluetooth 5.0 |
| Configuration method | App / Web |
| Operating voltage | DC 5V (+ / - 5%) |
| Typical power consumption | 2W |
| Operating temperature | -30 to +65°C |
| Operating humidity | 5% to 95% RH, non-condensing |
| Storage temperature | -40 to +70°C |
| Storage humidity | Less than 40% |
| Max operating altitude | 4000m |
| Ingress protection | IP65 |
| Dimensions (L x W x H) | 128 x 50 x 34mm |
| Installation method | Externally insert + twist lock |
| Weight | 80g |
| Certification | CE, FCC |
