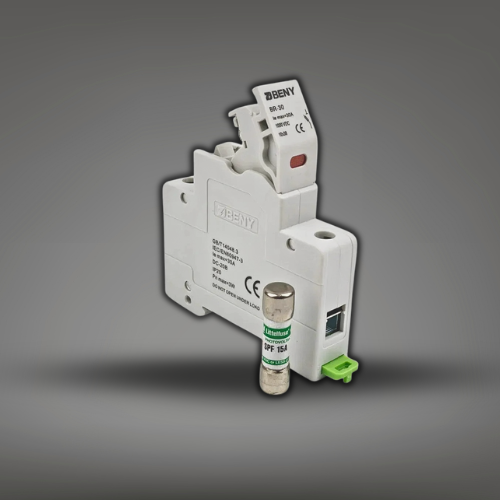

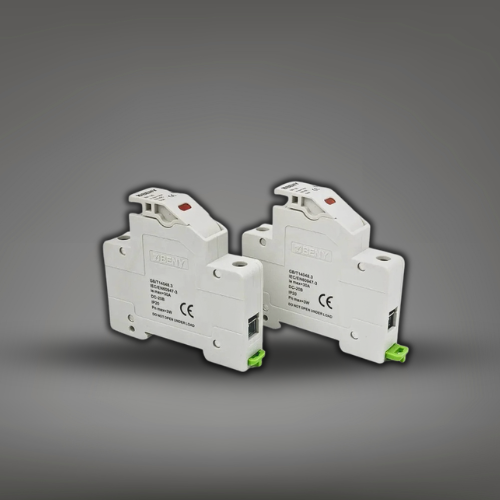

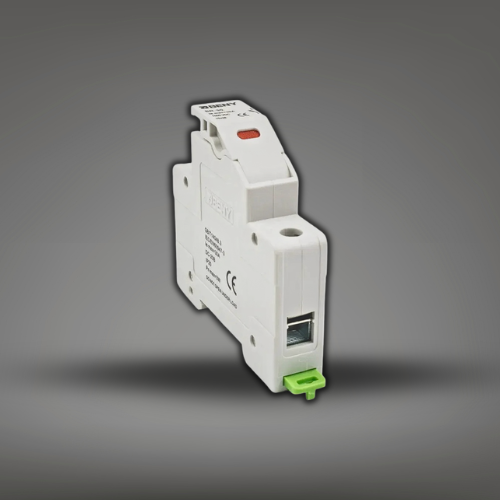

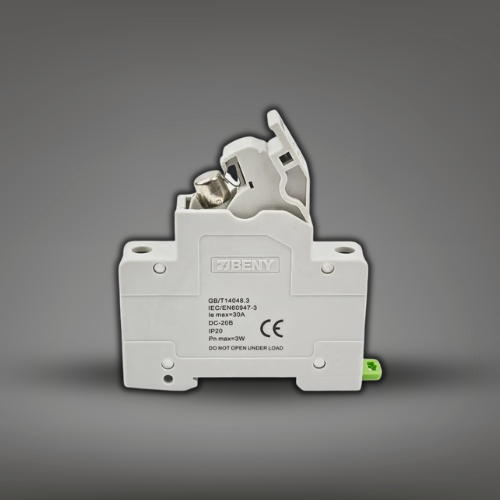

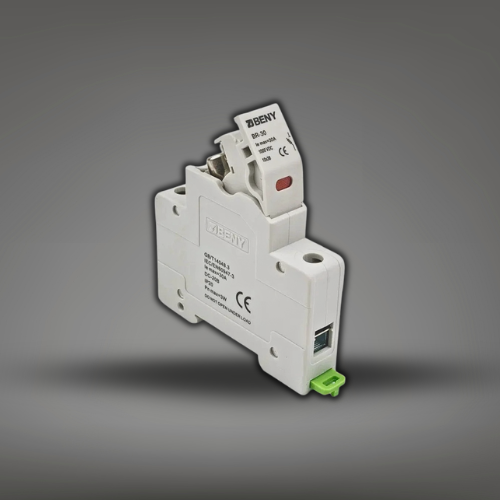

Solar PV Panel String Fuse & Holder Dc Protection 12/15/20Amps With Led Indicator
Solar PV Panel String Fuse & Holder DC protection 12A,15A, 20A with LED Indicator for fast diagnostics when an array of panels is not working.
A pair of solar PV fuses protect your precious solar panels from short circuits. Rated at 12A, 15A or 20A and suitable for photovoltaic systems with a maximum voltage of 1000V. It can be used from a single panel or a large string of 20 panels in series. LED Indicator is included, when the fuse fails and the solar panel is not working the red LED lights are turned on
The Fuse Holder was designed and manufactured, complying with the standard IEC60947-3.
The Rated Current is up to 30A, rated voltage is up to 1000V DC.
It is applied for PV DC combiner box, inverter etc, with the main function of over-current protection and effective disconnection.
Applications: off-grid, grid-tie, hybrid systems and solar parks.
Items included: 1 fuse + 1 holder
PRODUCT SPECIFICATION
- Max Breaking Capacity up to 20kA
- LED Indicator Light OFF/Indicator ON
- Suitable for 10x38mm Fuse Size
- Comply with: IEC6094-3
- Din rail mounted
- (HS Code:8536100000)
- GB/T 14048.3
- IEC/EN60947-3
- Ie Max = 30A
- DC-20B
- IP20
- Pn max=3W
- Terminal screws M5
- Operating temperature: -30°C to +70°C
