Pylontech Pelio
The Pylontech Pelio 5.12kWh is a premium lithium-ion battery module designed to deliver reliable, efficient energy storage for both residential and commercial applications. With a usable energy capacity of 5.12kWh, this sleek and scalable unit is ideal for pairing with solar PV systems, time-of-use energy shifting, and backup power configurations.

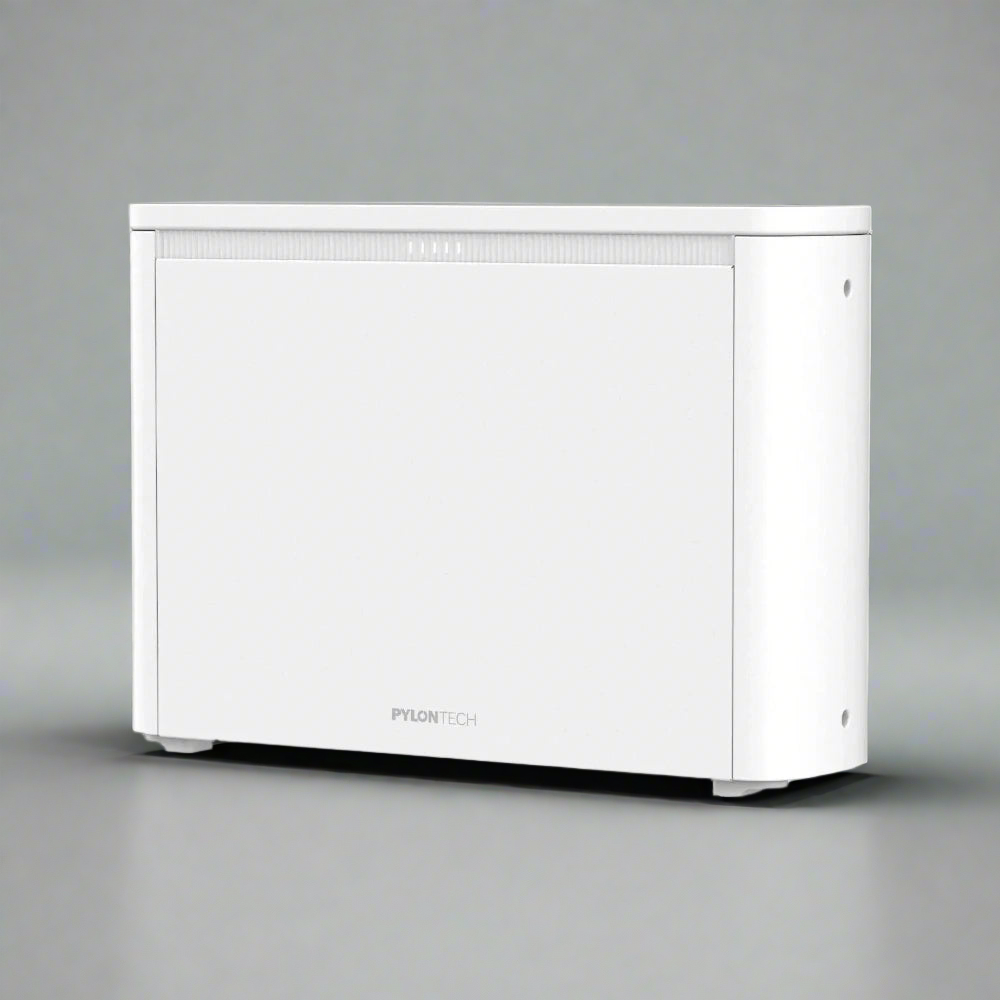

Featuring advanced LiFePO4 (Lithium Iron Phosphate) technology, the Pelio offers exceptional safety, long cycle life, and high efficiency. It supports seamless integration with leading hybrid inverters and can be expanded to meet greater energy demands through modular stacking. The compact floor-standing design also makes installation fast and space-efficient.
Key Features
- Usable Capacity: 5.12kWh
- Battery Type: Lithium Iron Phosphate (LiFePO4)
- Nominal Voltage: 51.2V
- Nominal Capacity: 100Ah
- Depth of Discharge (DoD): 90%+
- Cycle Life: 6,000+ cycles @ 90% DoD
- Size: 450mm (L) x 295mm (W) x 400mm (H)
- Weight: 45 kg

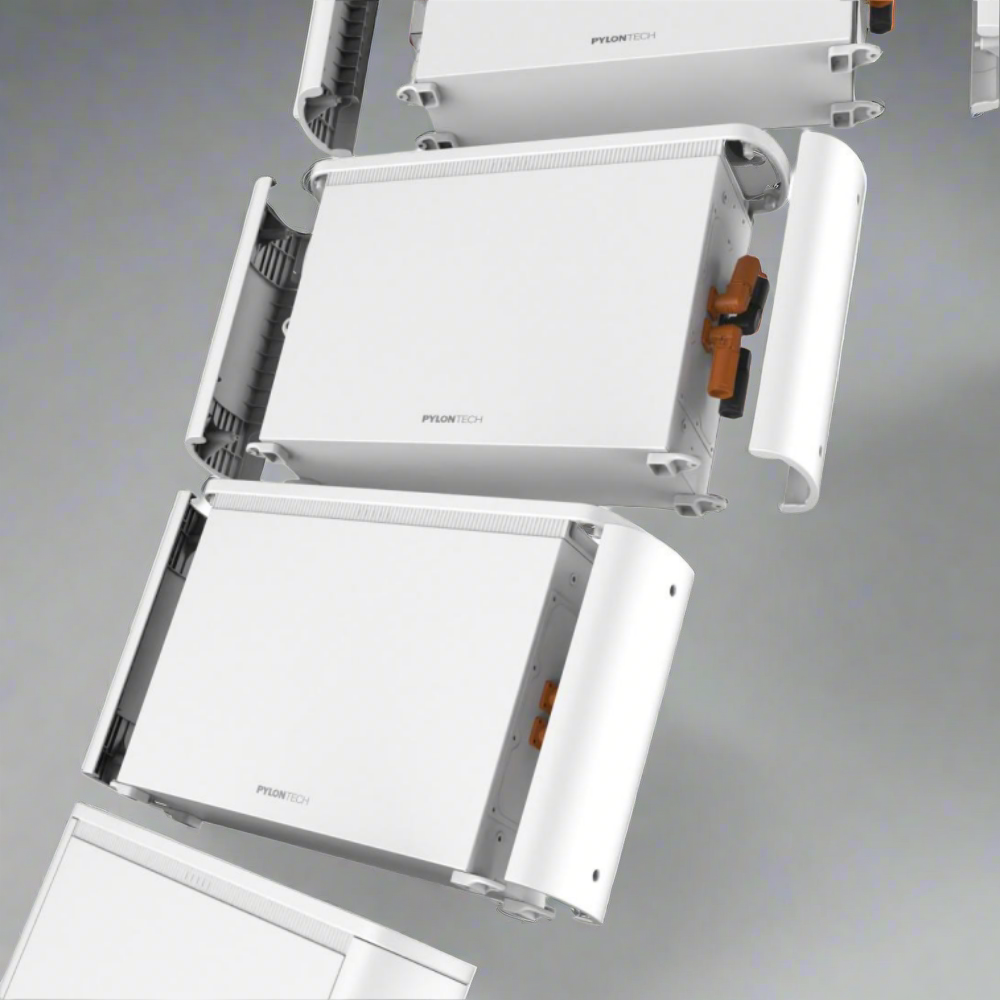

- Scalable: Modular design supports multiple units in parallel
- Safety: Integrated BMS with temperature and voltage protection
Download Compatible Device List
