GAVE Electro

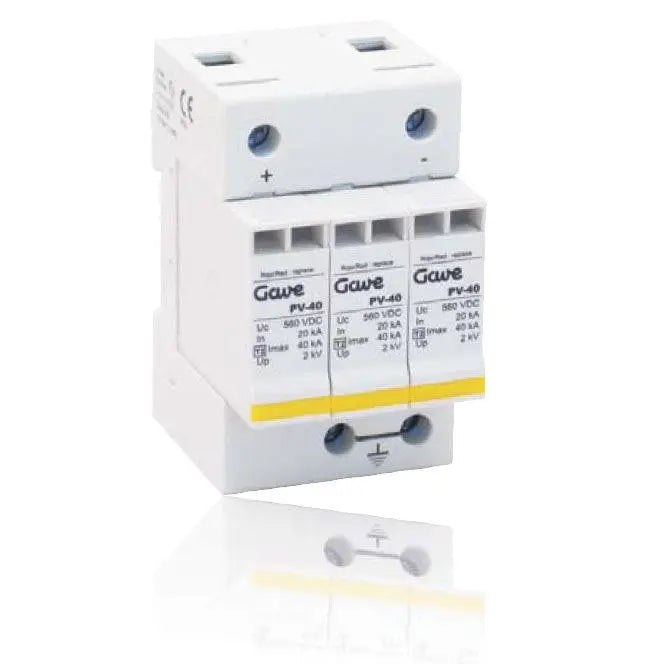

PV Surge Protection Class II 1000V 2-pole. Gave Electro

PV Surge Protection Class II 1000V 2-pole. Gave Electro

Gave Electro, Overvoltage surge protection device Class II for Photovoltaic Applications. Two-Pole Maximum 1000Vdc

The Surge protection device from Gave Electro is Class II approved. It meets the overvoltage protection needs for PV photovoltaic panels against lightning. The device is installed in parallel with the DC cables of solar panel strings. Surge Arrestors will protect the solar panels and inverters from lightning , the PST31PV from Gave-Electro features high energy MOV, thermal fuse and thermal disconnection mechanism. There is also an option for remote control signal

CHARACTERISTICS

  • Maximum Operating Voltage: Vc: 1000Vdc
  • Nominal Discharge Current: In: 20kA
  • Maximum discharge current Imax: 40kA
  • Protection Level Vp: 3kV

£99.54 GBP
£99.54 GBP
Sale Sold out
View full details

Customers are saying

0.00 ★ (0)
Verified

Did you know our shirts are rarely returned? The fit is just right – see for yourself!

GAVE Electro

PV Surge Protection Class II 1000V 2-pole. Gave Electro

£99.54
In stock

Gave Electro, Overvoltage surge protection device Class II for Photovoltaic Applications. Two-Pole Maximum 1000Vdc

The Surge protection device from Gave Electro is Class II approved. It meets the overvoltage protection needs for PV photovoltaic panels against lightning. The device is installed in parallel with the DC cables of solar panel strings. Surge Arrestors will protect the solar panels and inverters from lightning , the PST31PV from Gave-Electro features high energy MOV, thermal fuse and thermal disconnection mechanism. There is also an option for remote control signal

CHARACTERISTICS

  • Maximum Operating Voltage: Vc: 1000Vdc
  • Nominal Discharge Current: In: 20kA
  • Maximum discharge current Imax: 40kA
  • Protection Level Vp: 3kV
