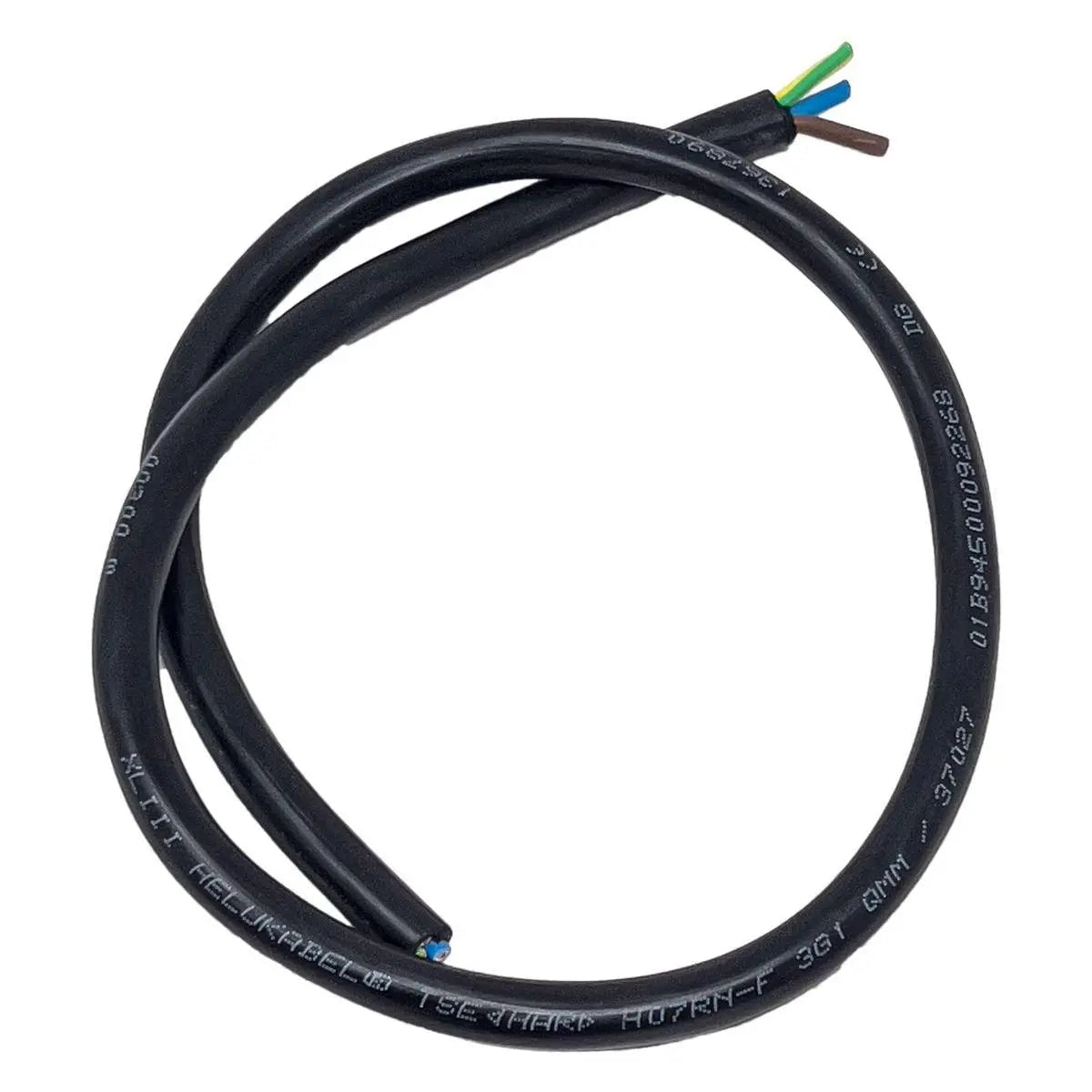

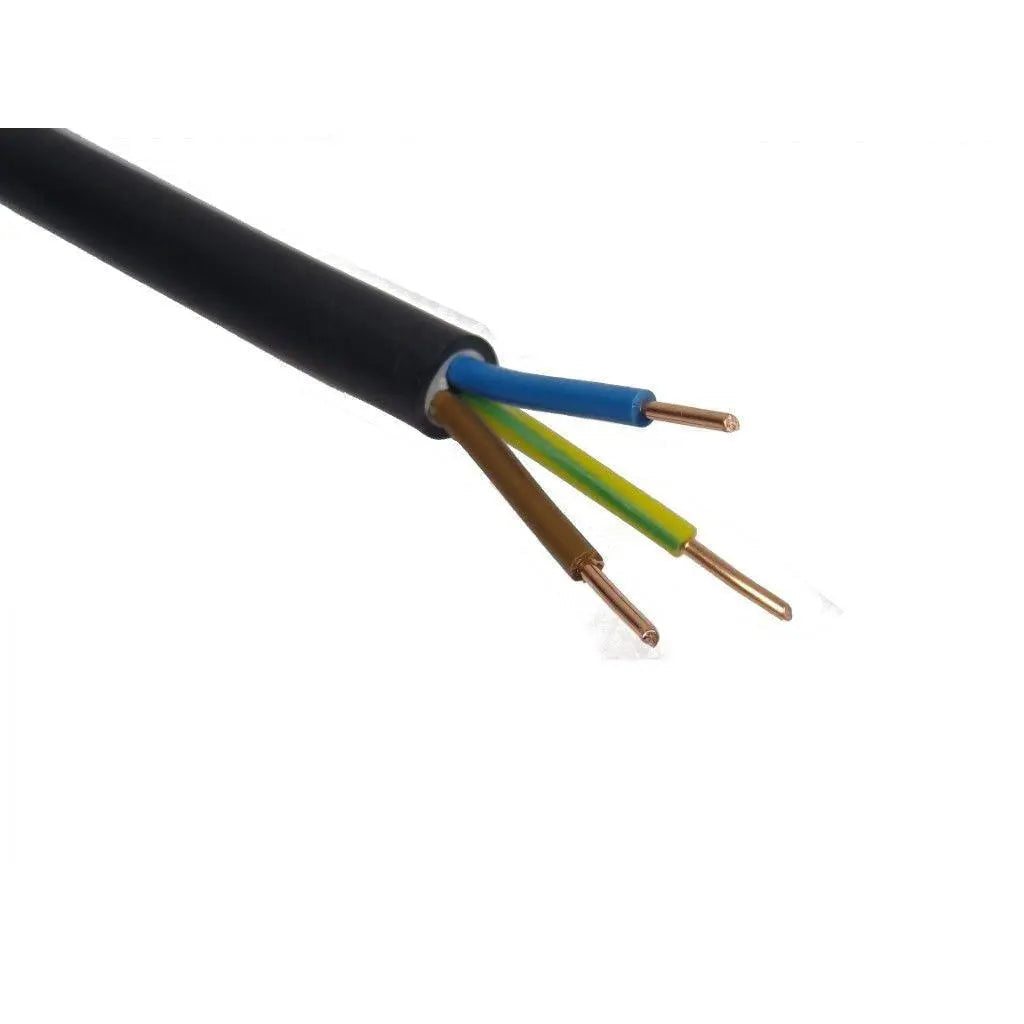

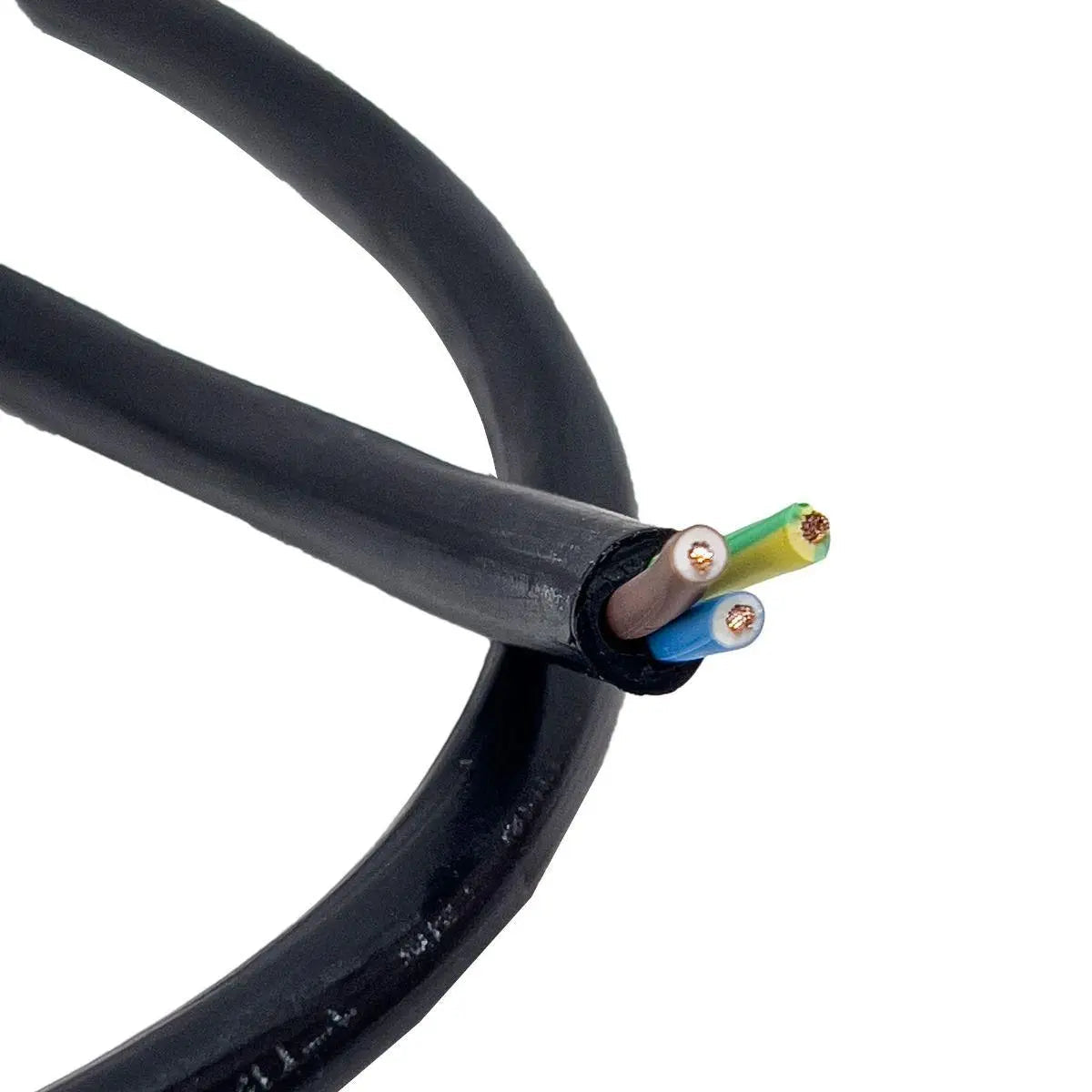

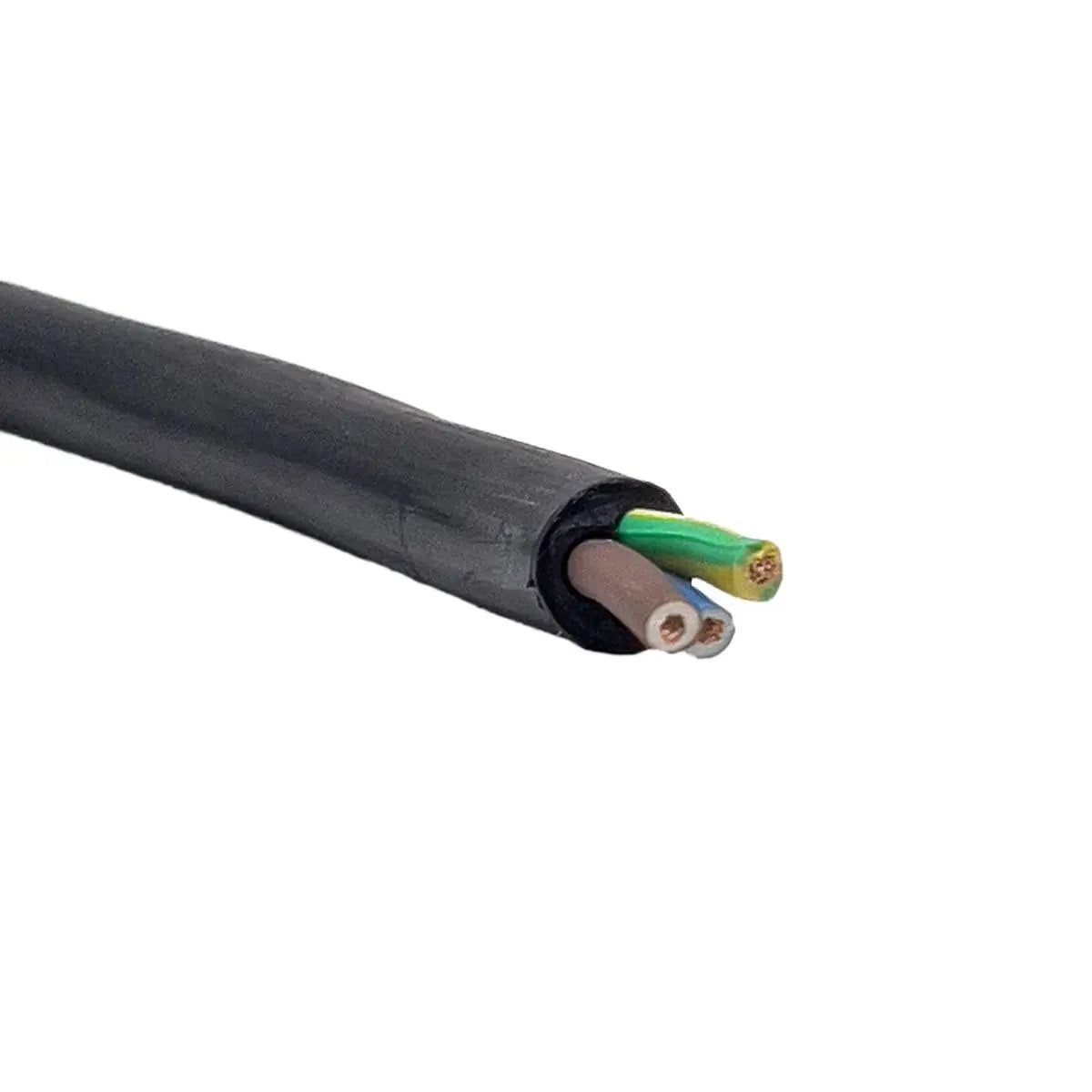

Helukabel NYY-J 3 Core 6mm², Black AC Cable 0.6/1kV
Multistranded - Flexible Power Cable Helukabel 6mm²
This VDE-approved cable is made in Germany with high-quality double PVC insulation. NYY-J cables are versatile and durable, they can be installed outdoors, underground, in brick and concrete walls. This type of cable has exceptional resistance to UV radiation and all weather conditions. The operating temperature is -40°C to +70°C.
APPLICATIONS AND USAGE
It uses a power and control cable. The ideal use is in single phase power supplies and solar systems. It can be connected as the main AC output cable to all our solar inverters
Outdoors, underground, in brickworks. It is compliant with UK wiring regulations such as BS7671 for installation (burial) in the ground). It is also suitable for installation in conduit for extra protection against mechanical stress.
The High-Tuff , NYY cable is suitable for outdoor use (UV resistant)
NYY-J is a VDE-approved, solid conductor*, black PVC jacketed, 600/1000 volt power and control cable.
-
Conductor: Class 1 solid plain copper to
BS EN 60228:2005 (previously BS6360), VDE0295, IEC 60228, CENELEC HD383 -
Insulation
PVC (Polyvinyl Chloride) Type YI4 to VDE0276 -
Sheath
FR/PVC (Flame Retardant / Polyvinyl Chloride) Type YM3 to VDE0276 -
Sheath Colour
Black -
Voltage Rating
600/1000V -
Temperature Rating
Fixed: -40°C to +70°C
Flexing: -5°C to +50°C -
Minimum Bending Radius
Single Core: 15 x overall diameter
Multi-Core: 12 x overall diameter -
Core Identification
Up to and including 5 cores:
colour coded
