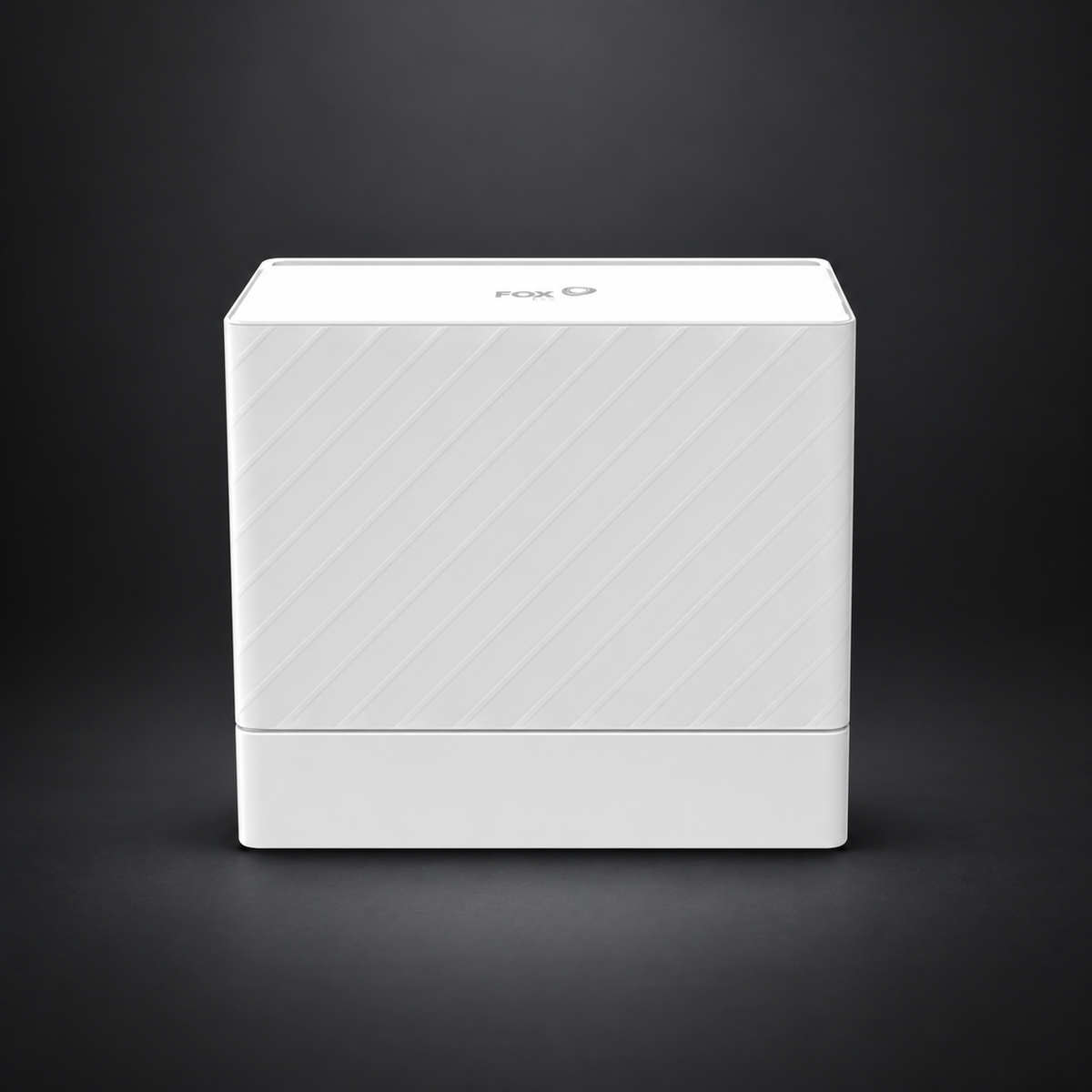

The Fox ESS PQ1 5kW is a single-phase hybrid inverter for the stackable PowerQube energy storage system. It manages solar generation, compatible battery storage and household power, with monitoring through the FoxCloud app and web portal.
This is the inverter with heating function, supplied separately from the battery modules. Build a compatible system using two to six Fox ESS EQS 5000 modules, selected and configured to the manufacturer's installation requirements.
Key features
- 5kW rated AC output for single-phase systems.
- Two independent MPPT trackers, with one PV string per tracker.
- IP66 enclosure for a suitable indoor or outdoor installation.
- Automatic backup switchover in under 4ms when installed as a compatible backup system.
- Expandable stackable battery system and support for up to three systems in parallel.
- Remote monitoring through FoxCloud.
Technical specifications
| Series | Fox ESS PQ1 / PowerQube |
|---|---|
| Rated AC power | 5,000W / 5,000VA |
| Grid connection | Single phase, 220 / 230 / 240V |
| MPPT trackers / strings | 2 / 1 + 1 |
| Maximum PV input voltage | 600V |
| MPPT voltage range | 80–550V |
| Maximum PV input current | 20A per MPPT |
| Battery voltage range | 80–500V |
| Maximum charge / discharge current | 50A / 50A |
| Rated backup output | 5,000VA |
| Enclosure protection | IP66 |
| Inverter dimensions (W × H × D) | 570 × 420 × 380mm (excluding battery modules and base) |
System compatibility
Compatible battery modules, installation accessories and protection equipment are purchased separately. The installer must confirm the complete system design, backup configuration and battery compatibility using the current manufacturer documentation.
Downloads
Download Quick Installation Guide
