Solax TP-HS36

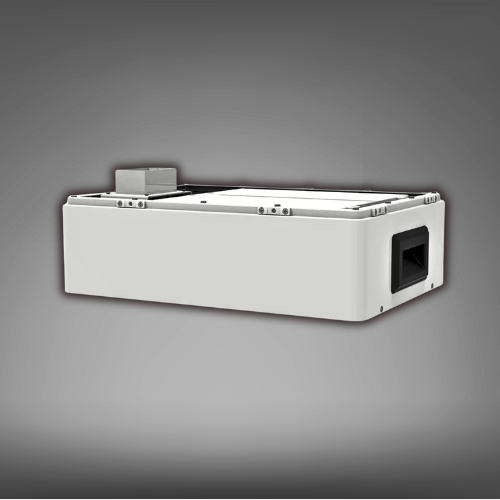

The Solax TP-HS36 is a 3.6kWh Battery Module for use in the T-BAT-SYS-HV-S3.6 system. The battery utilises reliable LFP technology and has a maximum 50A continuous charging and discharging current. It has an IP65 rated construction, meaning it can be installed indoors or outdoors.

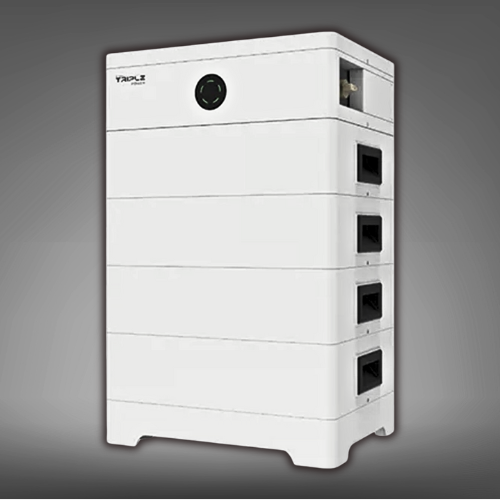

The T-BAT-SYS-HV-S3.6 system is scalable from 2 - 13 battery modules, achieving a maximum capacity of 47.9 kWh.

Product Features

• High 50A continuous charge/discharge rate for peak performance
• Integrated battery heating for reliable low-temperature operation
• Safe and durable LFP cells with over 6000 cycle life
• IP65-rated for flexible indoor or outdoor installation
• Soft-start function prevents power surges on startup
• Scalable from 7.3kWh to 47.9kWh, extendable over time
• Compact, stackable design enables quick single-person setup
• Plug-and-play with pre-wired comms for faster installs
• Remote monitoring and firmware updates via inverter

Technical Specification

• Battery type: Li-ion (LFP)
• Battery module capacity: 3.6 kWh
• Dimensions: 510 x 365 x 152 mm (L x W x H)
• Weight: 33.5 kg

Please note additional BMU or Series Box kits are required to complete installation of this battery type.

Download Installation Guide

Download Data Sheet
