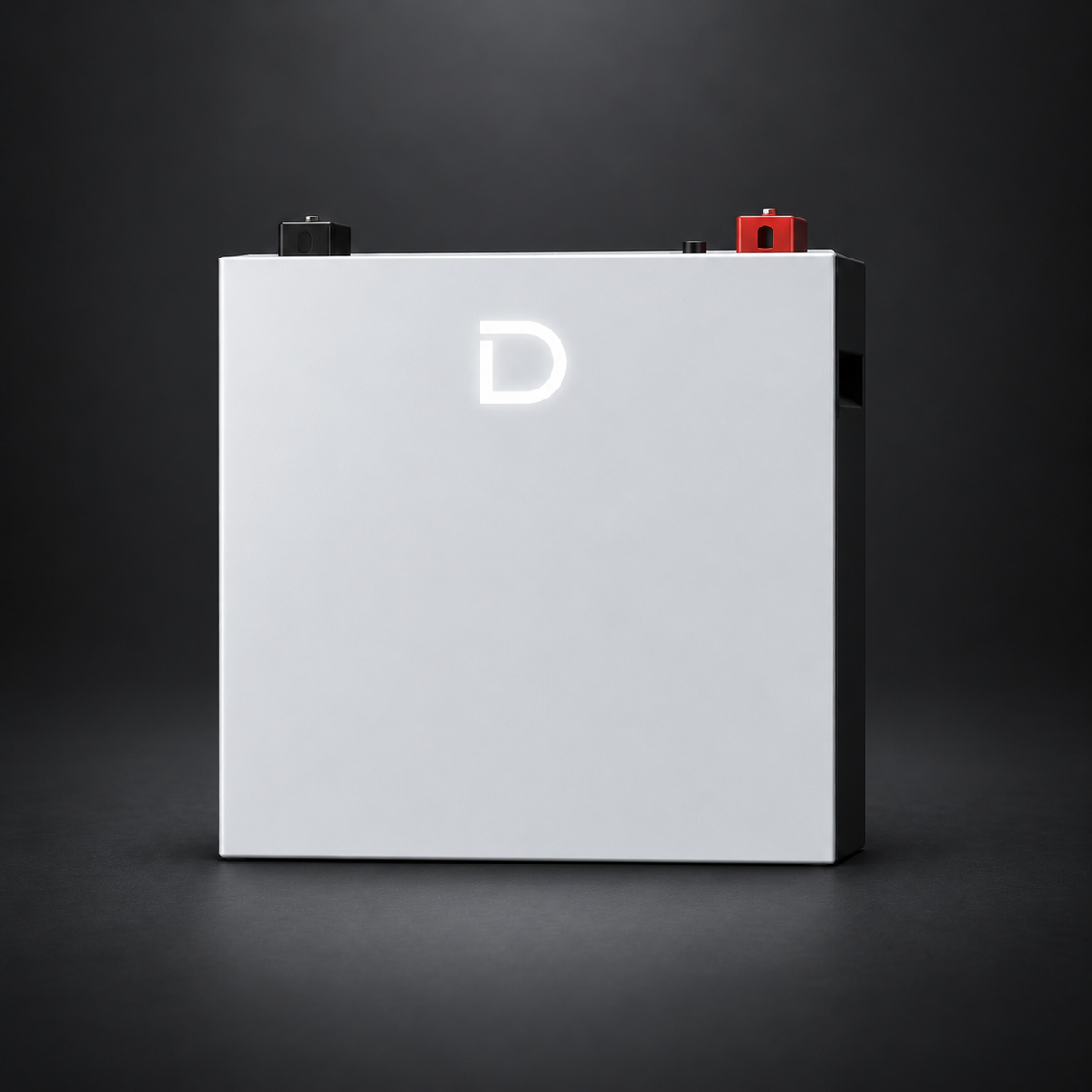

The Dyness DL5.0C Pro is a compact 5.12kWh LiFePO4 battery for compatible hybrid and off-grid energy storage systems. Built-in WiFi and heating support flexible monitoring and low-temperature operation.
Key features
- 5.12kWh nominal energy with 95% depth of discharge.
- Maximum 1C discharge rate.
- Expand with up to 50 units in parallel.
- Built-in WiFi with app and OTA functions.
- Heating enables charging down to -20°C.
- Compact 46kg design.
Technical specifications
| Model / SKU | DL5.0C Pro / DY-DL5.0C-PRO |
|---|---|
| Battery chemistry | LiFePO4 |
| Nominal energy / capacity | 5.12kWh / 100Ah |
| Nominal / operating voltage | 51.2V / 44.8–57.6V |
| Recommended charge / discharge | 50A / 50A (0.5C) |
| Maximum charge / discharge | 75A / 100A |
| Peak discharge | 120A for 10 minutes |
| Depth of discharge | 95% |
| Net weight | 46kg |
| Dimensions (W/D/H, per datasheet) | 488 / 515 / 150mm |
| Charging temperature | 0–55°C; -20–55°C with heating |
| Discharging temperature | -20–55°C |
| Communication | CAN / RS485; built-in WiFi |
| Protection rating | IP20 |
System compatibility
Use with a compatible low-voltage inverter. Confirm the specific inverter model, firmware, communication cable and installation requirements before purchase. IP20 protection requires a suitable indoor installation.
