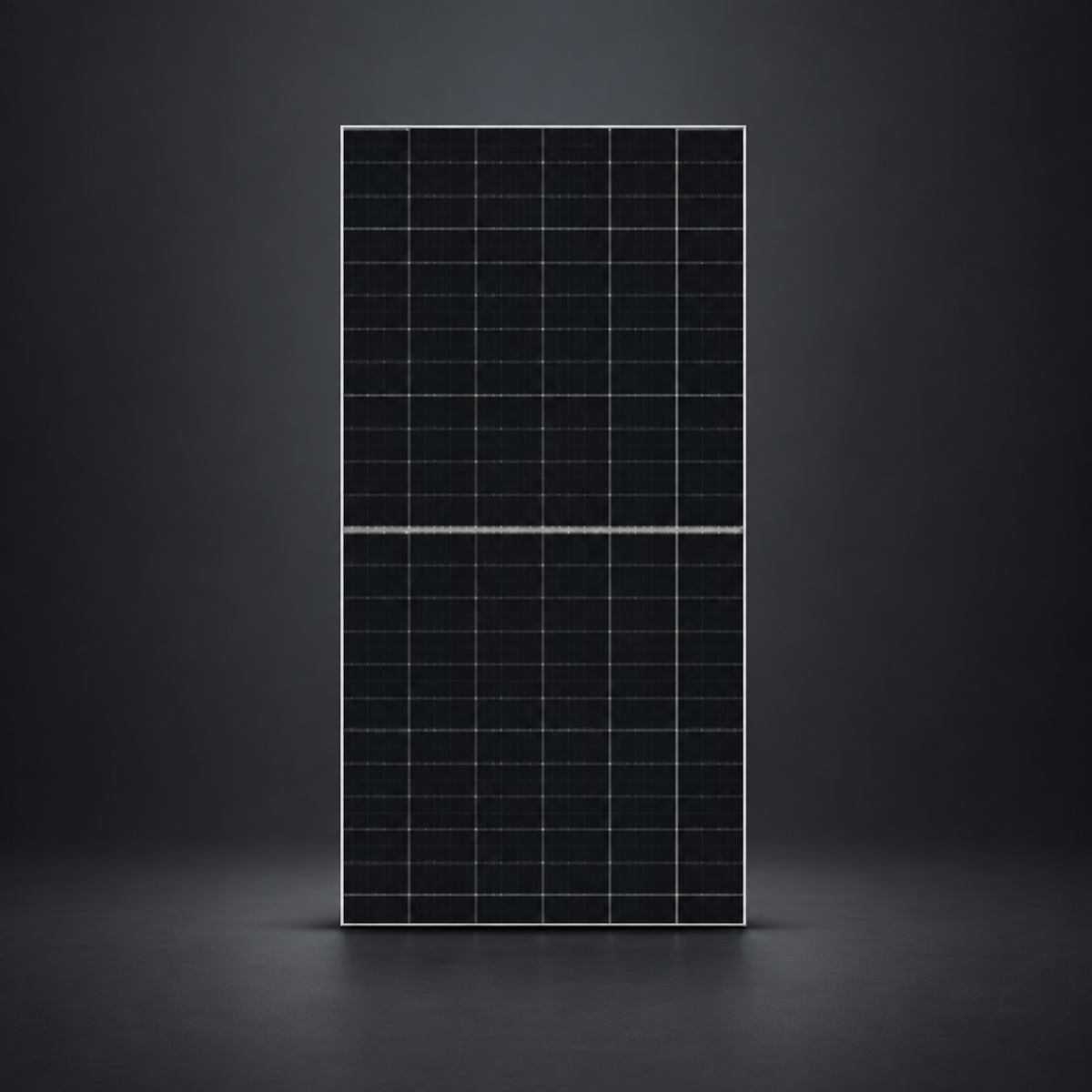

The DMEGC INFINITY DM585M10T-B72HSW is a 585W N-type bifacial solar panel with double-glass construction and a silver frame. Its 144-cell layout delivers 22.6% front-side efficiency under standard test conditions.
Key features
- Bifacial design can collect reflected light at the rear; additional yield depends on mounting, clearance and the surrounding surface.
- 2 mm heat-strengthened glass on both faces.
- Low -0.29%/°C power temperature coefficient.
- 15-year product and 30-year linear power warranties, subject to manufacturer terms. Guaranteed output is 87.4% at year 30.
Technical specifications
| Manufacturer model / supplier SKU | DM585M10T-B72HSW / DM-585M10T-B72HSW |
|---|---|
| Rated front power / efficiency (STC) | 585 W / 22.6% |
| Cell type / arrangement | N-type monocrystalline; 144 cells (6 × 24) |
| Dimensions (length × width × depth) | 2,278 × 1,134 × 30 mm |
| Net module weight | 31.8 kg |
| Front / rear glass | 2 mm / 2 mm heat-strengthened glass |
| Vmp / Imp | 44.04 V / 13.30 A |
| Voc / Isc | 52.70 V / 14.05 A |
| Bifaciality | 80% ±5% |
| Maximum system voltage | 1,500 V DC (IEC) |
| Overcurrent protection rating | 30 A |
| Power tolerance | 0 to +3% |
| Power temperature coefficient | -0.29%/°C |
| Operating temperature | -40°C to +85°C |
| Junction box | IP68; 3 diodes |
| Product / linear power warranty | 15 years / 30 years, subject to manufacturer terms |
Front-side electrical ratings are measured at STC: 1,000 W/m² irradiance, 25°C module temperature and AM1.5. Weight and dimensions refer to one module, excluding packaging.
Downloads
DMEGC standard solar module installation manual (2026-1)
Installation guidance
A qualified installer must confirm mounting loads, string voltage, inverter compatibility and the exact connector variant supplied. Follow the manufacturer's installation instructions and use compatible mating connectors.
