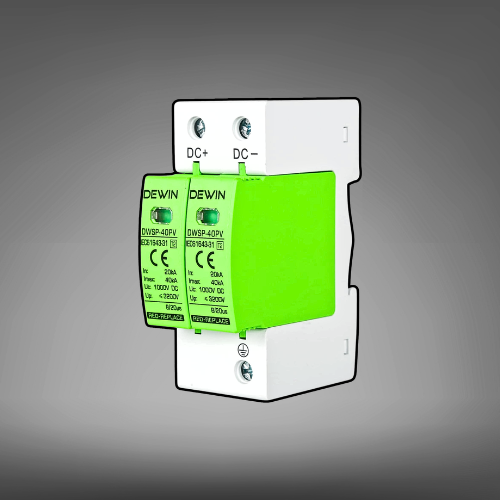

DEWIN DC Surge Protection Device, 2P 40kA DC 1000V
DEWIN Surge Protective Device
2P 40KA Photovoltaic Arrester Device DC 1000V Surge Protector Lightning Protection Device
Specifications
- Material: PC plastic + copper
- Number of poles: 2P
- Maximum continuous withstand voltage Uc: 1000V DC
- Nominal amplified current In: 20KA
- Maximum discharge current Imax: 40KA
- Response time: ≤20ns
- Protection voltage Up: 3.2KV
- Working temperature: -40℃-80℃
- Applicable wire: 4-35mm²
- Installation method: 35mm guide rail installation
