Battery Fuses & DC Disconnector 400A. Mersen High Current Protection - W1002129

Product Overview

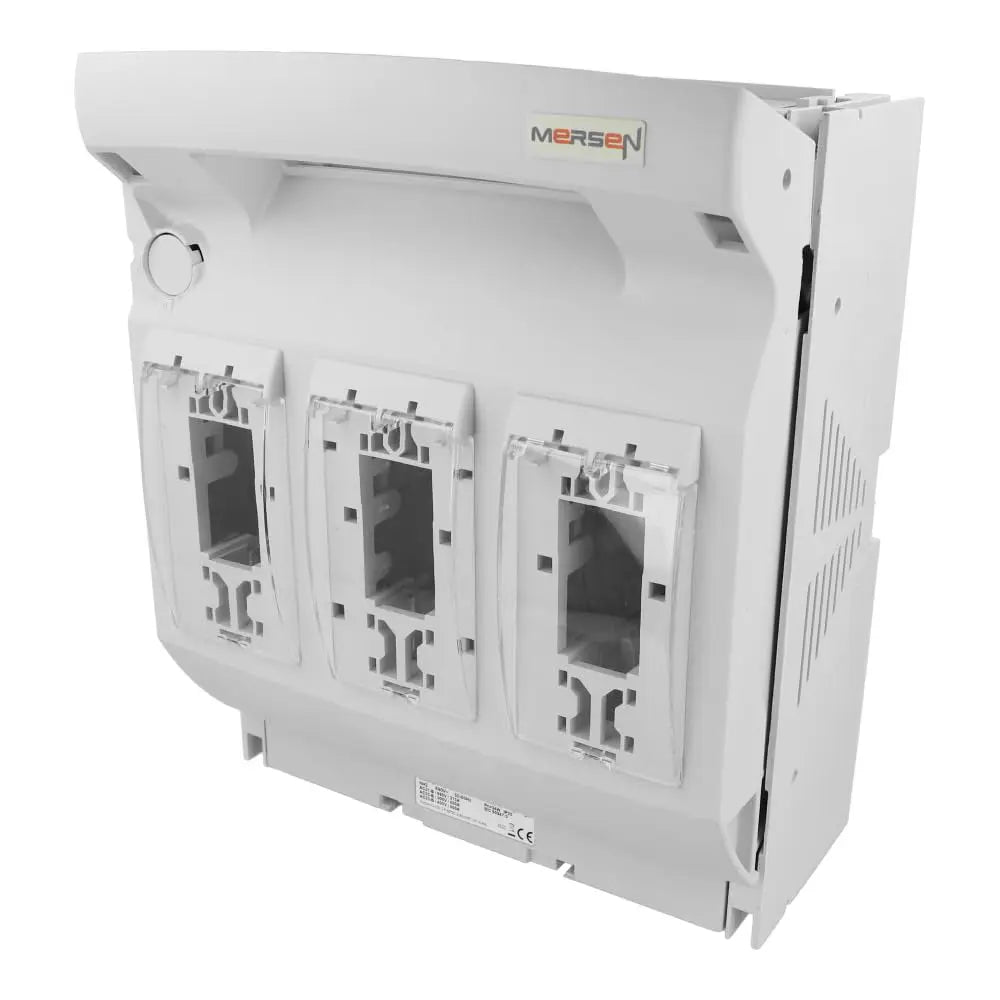

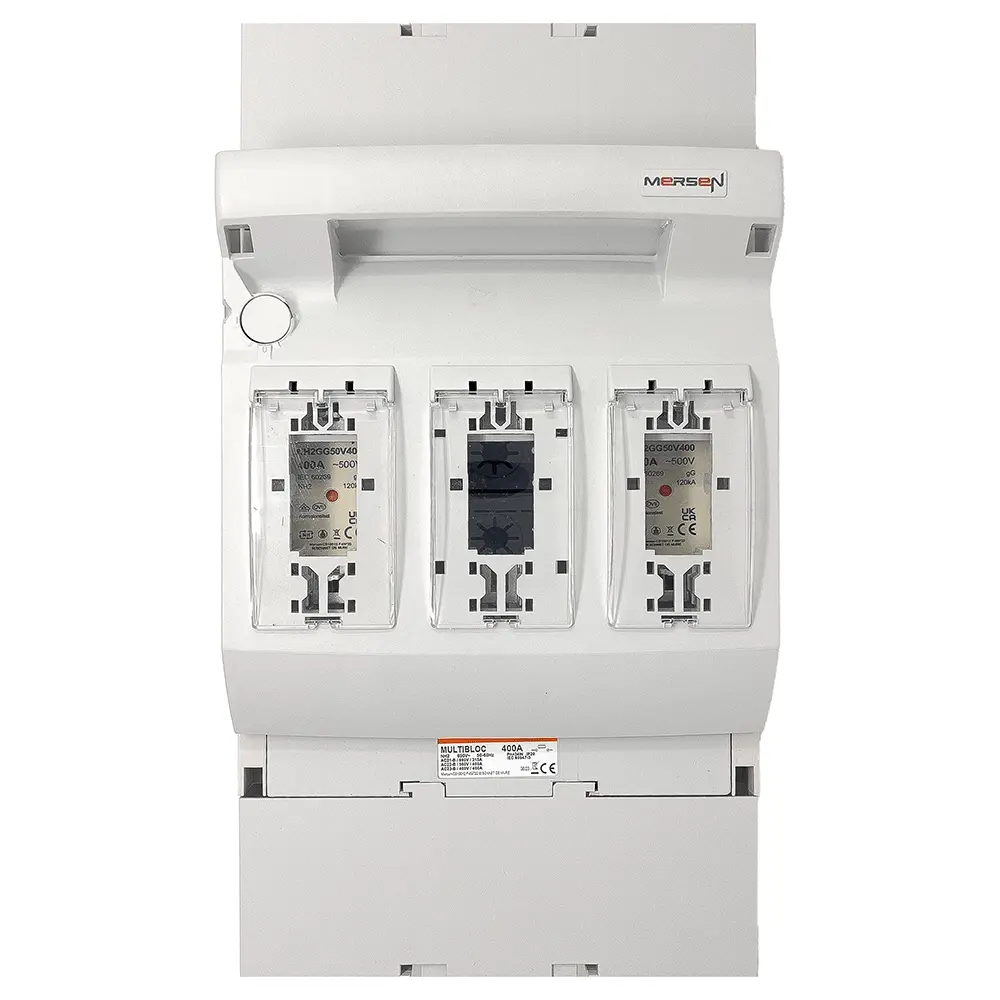

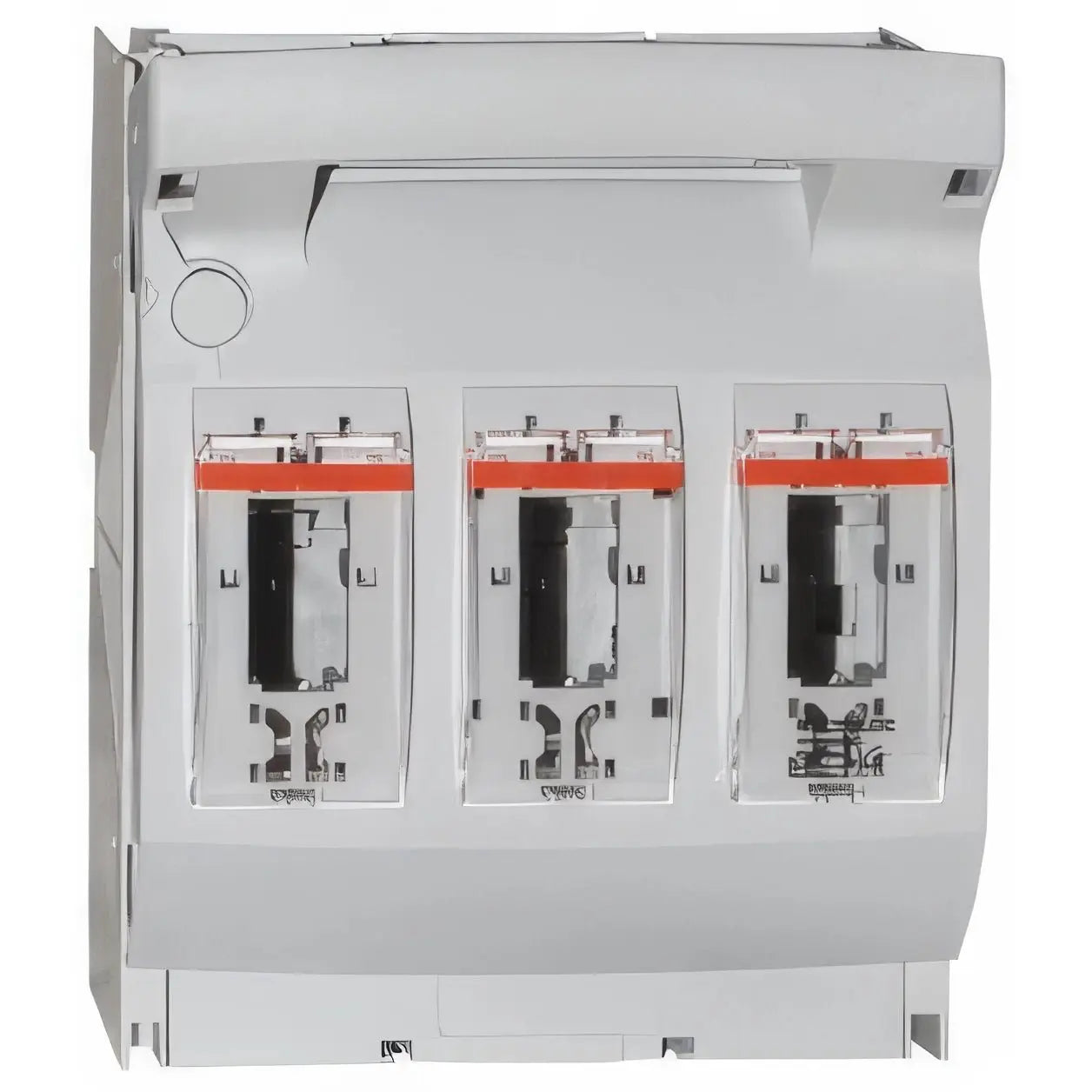

The MULTIBLOC® series 2.ST8 features NH fuse switch disconnectors designed for 400A. Ideal for bottom fitting and panel installation, these units are available in both triple pole and quadruple pole configurations. For use in distribution units with a central cover, specific covers ensure a uniform profile in height and length.

The MULTIBLOC® size 2 is compatible with NH fuse-links according to IEC/EN 60269-2 and VDE 0636-2, with a rating of 400A. This product offers fast and easy installation while ensuring a high degree of security during both installation and maintenance.

Features & Benefits

• Touch protection IP 20 - Maintained even when fuse link is in test mode
• Parking position of switch operating cover - Available even with fuse-links inserted
• Optional electronic or electro-mechanic fuse monitoring
• Modular system of cover - The cover for cable termination area can be extended as needed
• Varieties of cable termination - Options include screw, bolt, clamp strap, extendable for V-terminal
• Optional indicating switch - For switch door position
• Installation on 100mm bus bar system with adapter
• Safe on load connection/disconnection - In accordance with IEC 60947-3

Applications

• Panel boards for industrial use
• Feeder pillars for industrial use
• Meter distribution units
• Measuring transformer cabinets
• Transmitting stations for telecommunications

Standards

Complies with IEC/EN 60947-3 for NH-fuse links size 2 in accordance with IEC/EN 60269-2 and VDE 0636-2.
