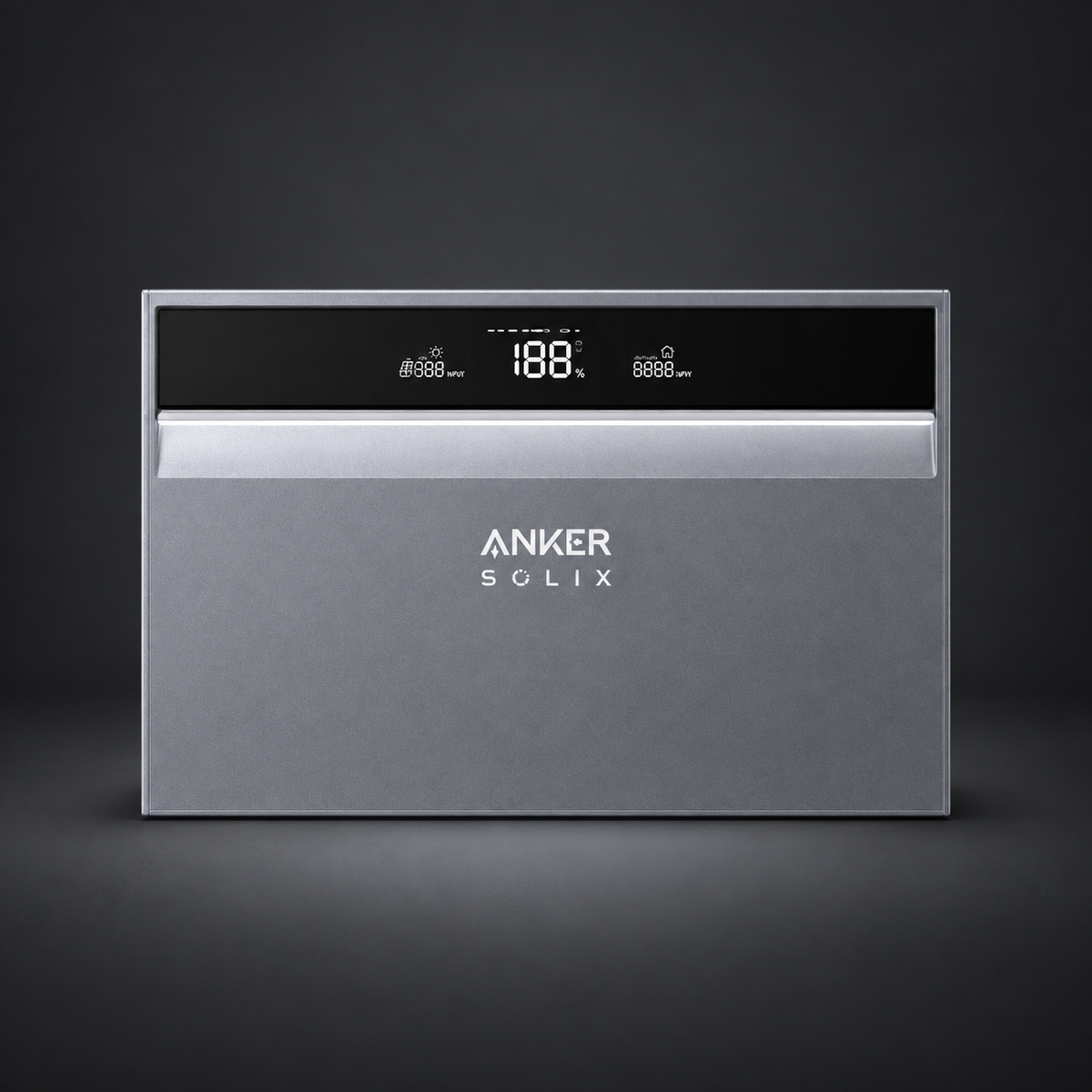

Anker SOLIX X1-H8K-T 8kW Three-Phase Hybrid Power Module
The X1-H8K-T manages solar generation and compatible Anker SOLIX X1 battery storage in a three-phase installation. It combines 8kW rated AC output with two MPPT inputs and a slim 150 mm-deep enclosure, helping build a coordinated solar and storage system.
Key features
- 8kW rated three-phase output with up to 16kW PV input.
- Two independent MPPTs for array design flexibility.
- Works with compatible X1 battery modules, supplied separately.
- IP66 enclosure with ground or wall mounting options; wall mounting requires the appropriate rack.
- Wi-Fi, Bluetooth and Ethernet connectivity, with optional 4G.
Technical specifications
| Manufacturer model | X1-H8K-T |
|---|---|
| Rated AC output | 8 kW; three-phase |
| Maximum apparent output (on-grid) | 8.8 kVA |
| Maximum PV input power | 16 kW |
| Maximum PV input voltage | 1,000 V DC |
| MPPT operating range | 140–950 V DC |
| Start-up voltage | 160 V DC |
| Rated PV input voltage | 600 V DC |
| MPPTs / strings | 2 MPPTs; 1 string per MPPT |
| Maximum input current | 16 A per MPPT |
| PV short-circuit current limit | 20 A per MPPT |
| Compatible battery | Anker SOLIX X1 LFP system; 5–30 kWh per unit, subject to configuration |
| Battery input voltage range | 350–450 V DC |
| Nominal grid connection | 220/380 V or 230/400 V AC; 3L + N + PE |
| Rated frequency | 50/60 Hz |
| Off-grid rated output | 8 kW |
| Off-grid maximum apparent output | 8.4 kVA |
| Peak off-grid output | 16 kVA for 10 seconds, subject to system configuration |
| Typical transfer time | Under 10 ms |
| Maximum efficiency | 98.0% |
| European efficiency | 97.1% |
| Connectivity | Wi-Fi, Bluetooth, Ethernet; optional 4G |
| Dimensions (width × height × depth) | 670 × 450 × 150 mm |
| Net power module weight | 30 kg |
| Ingress protection | IP66 |
| Operating temperature | −25°C to +60°C; power derates above 45°C |
| Operating altitude | Up to 4,000 m; power derates above 2,000 m |
| Limited warranty | 10 years, subject to manufacturer terms |
Weight and dimensions refer to the power module itself, excluding batteries, packaging and separately fitted accessories. Backup performance depends on battery capacity, system configuration and installation requirements.
What is included
One X1-H8K-T power module with WLAN dongle, power sensor and current transformer equipment, floor base, wall bracket, covers, connection hardware and fixings as detailed in the manufacturer’s packing list. Battery modules are supplied separately. Refer to the packing list for the complete accessory breakdown.
