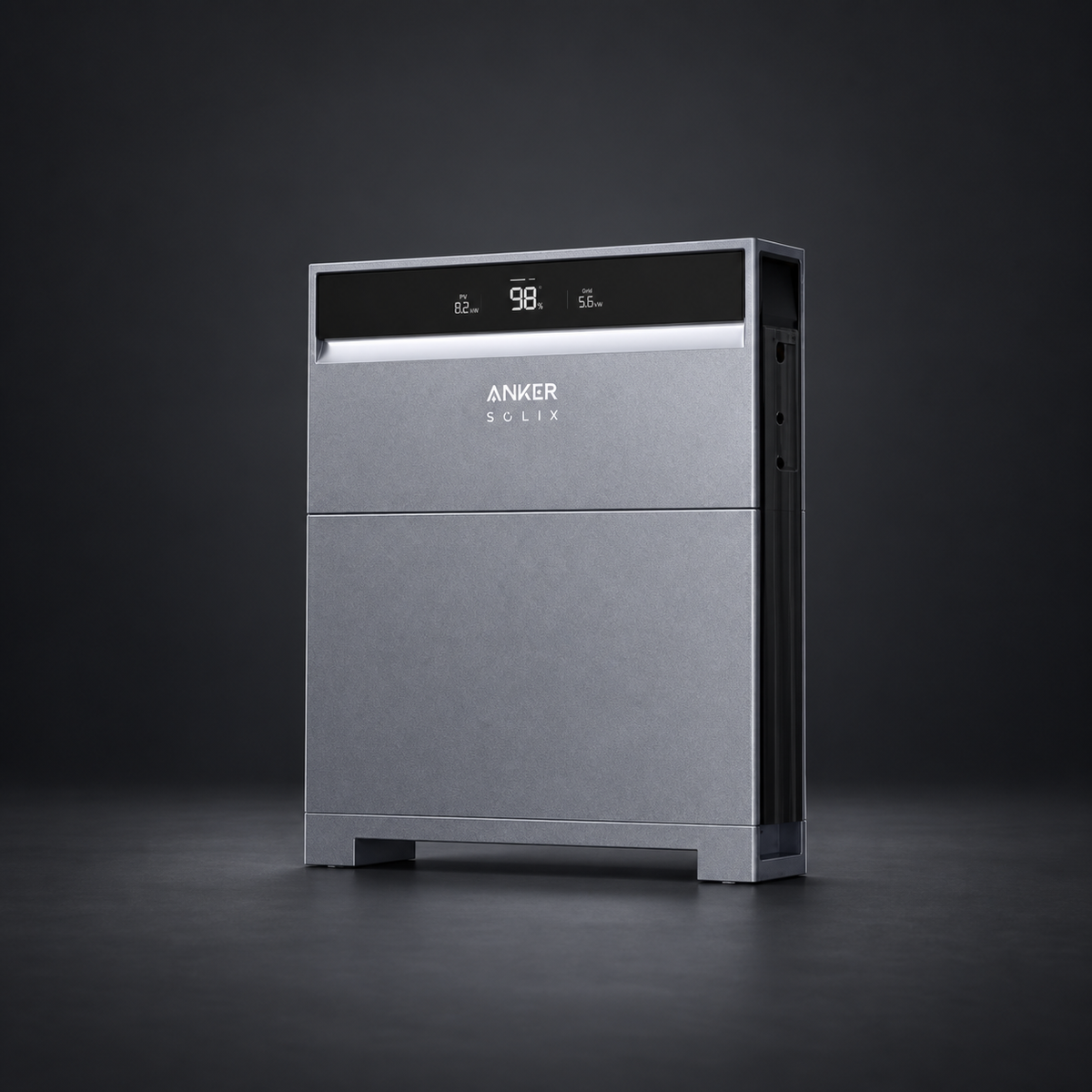

Anker SOLIX X1 5kW Inverter and 5kWh Battery Package
This package combines one X1-H5K-S single-phase hybrid power module with 1 X1-B5-H battery module, providing 5kW rated inverter output and 5kWh design battery capacity. It brings solar generation and battery storage together in the modular Anker SOLIX X1 system.
Key features
- 5kW rated single-phase output with up to 10kW PV input.
- Two independent MPPTs for array design flexibility.
- Includes 1 × 5kWh X1-B5-H LFP battery module.
- IP66 enclosure with ground or wall mounting options; wall mounting requires the appropriate rack.
- Wi-Fi, Bluetooth and Ethernet connectivity, with optional 4G.
Technical specifications
| Manufacturer model | X1-H5K-S |
|---|---|
| Rated AC output | 5 kW; single-phase |
| Maximum apparent output (on-grid) | 5.5 kVA |
| Maximum PV input power | 10 kW |
| Maximum PV input voltage | 600 V DC |
| MPPT operating range | 80–550 V DC |
| Start-up voltage | 75 V DC |
| Rated PV input voltage | 360 V DC |
| MPPTs / strings | 2 MPPTs; 1 string per MPPT |
| Maximum input current | 16 A per MPPT |
| PV short-circuit current limit | 20 A per MPPT |
| Compatible battery | Anker SOLIX X1 LFP system; 5–30 kWh per unit, subject to configuration |
| Battery input voltage range | Charge: 390–550 V DC; discharge: 370–500 V DC |
| Nominal grid connection | 220/230/240 V AC; single-phase |
| Rated frequency | 50/60 Hz |
| Off-grid rated output | 5 kW |
| Off-grid maximum apparent output | 5.5 kVA |
| Peak off-grid output | 10 kVA for 10 seconds, subject to system configuration |
| Typical transfer time | Under 10 ms |
| Maximum efficiency | 97.4% |
| European efficiency | 96.7% |
| Connectivity | Wi-Fi, Bluetooth, Ethernet; optional 4G |
| Power module dimensions (width × height × depth) | 670 × 335 × 150 mm |
| Power module net weight | 19 kg |
| Included battery design capacity | 5 kWh (1 × 5 kWh) |
| Battery chemistry | LFP |
| Battery dimensions per module (width × height × depth) | 670 × 360 × 150 mm |
| Battery weight per module | 51 kg |
| Configured system dimensions (width × height × depth) | 670 × 765 × 150 mm, manufacturer floor-mounted configuration |
| Configured system net weight | 73.5 kg including floor base and top cover, excluding packaging |
| Maximum charge/discharge power per battery module | 3 kW; complete-system output is also limited by the power module |
| Battery operating temperature | −20°C to +55°C |
| Ingress protection | IP66 |
| Operating temperature | −25°C to +60°C; power derates above 45°C |
| Operating altitude | Up to 4,000 m; power derates above 2,000 m |
| Limited warranty | 10 years, subject to manufacturer terms |
System weight and assembled dimensions are the manufacturer’s figures for the stated single-column floor-mounted configuration, including its base and top cover. Individual component dimensions are also shown. Package shipping dimensions are not specified. Backup performance depends on battery capacity, system configuration and installation requirements.
What is included
One X1-H5K-S power module with WLAN dongle, DDSU666 power sensor, floor base, covers, connection hardware and fixings as detailed in the manufacturer’s packing list. Includes 1 X1-B5-H battery module with their standard module connection accessories. Batteries have a 10-year limited warranty subject to the manufacturer’s throughput, retained-capacity and other conditions. Refer to the packing list for the complete accessory breakdown.
