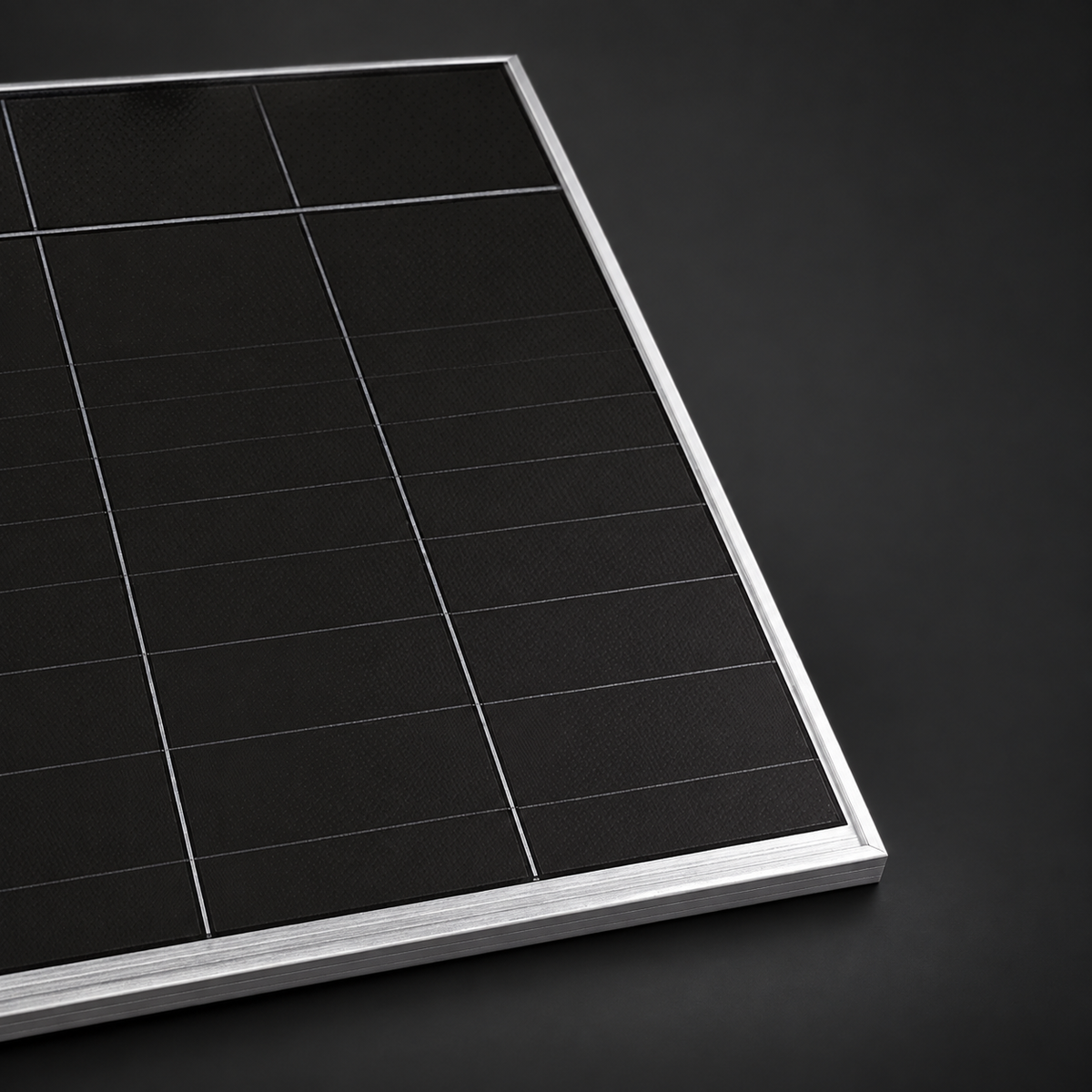

The AIKO Stellar 3N+ 665W is a large-format N-Type ABC solar panel with dual-glass construction and an anodised aluminium silver frame. Its back-contact cell design provides a clean appearance and 24.6% module efficiency at standard test conditions.
This listing is for one panel, supplied in the short-cable version with AIKO 01C connectors.
Key features
- 665W rated output with N-Type ABC cell technology.
- Dual 2mm glass construction and a 30mm silver frame.
- Partial shading optimisation and micro-crack resistance.
- 15-year product and 30-year performance warranties, subject to AIKO's terms.
Technical specifications
| Manufacturer model | AIKO-A665-MDE72Dw |
|---|---|
| Rated output (STC) | 665W |
| Module efficiency (STC) | 24.6% |
| Cell layout | 144 cells (6 × 24) |
| Dimensions (L × W × D) | 2,382 × 1,134 × 30mm |
| Net module weight (manufacturer datasheet) | 32.2kg ±3% |
| Maximum power voltage (STC) | 45.09V |
| Maximum power current (STC) | 14.75A |
| Open circuit voltage (STC) | 55.20V |
| Short circuit current (STC) | 15.45A |
| Maximum system voltage | 1,500V DC |
| Maximum series fuse rating | 30A |
| Power temperature coefficient | −0.26%/°C |
| Junction box | IP68, three bypass diodes |
| Glass thickness | 2.0mm front + 2.0mm rear |
| Frame | Anodised aluminium, silver |
| Connector variant | AIKO 01C, short cables |
Electrical and weight figures above follow the linked manufacturer datasheet, revision 202603 V2.1 EN. Confirm the supplied module label and connector version when designing the installation. Use the manufacturer's installation manual for approved clamping zones and loading conditions.
