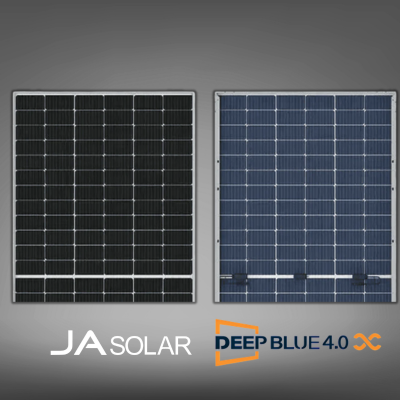

605W JA Solar N-Type | Bifacial Double Glass Solar Panel | Half-Cell

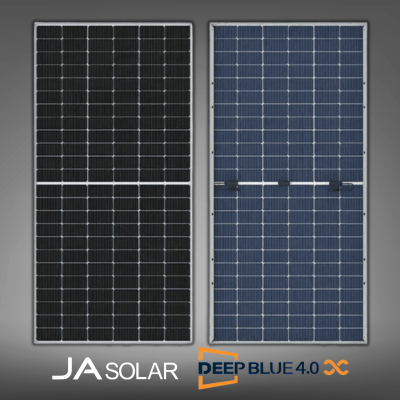

JA Solar 605W N-Type Bifacial Double Glass Solar Panel
JAM72D-40-605-LB-TS-MC4
Powered by the latest MBB n-type solar cell and half-cell configuration, these modules have higher output power, lower LID, better weak illumination response, and better temperature coefficient.
605W N-type Double Glass High Efficiency Mono Module.
- Rating: 605W
- Efficiency: 22.9%
- Width: 1,134mm
- Height: 2,333mm
Product Features:
- High Power Output (605W) : The JA Solar 605W module delivers an exceptional power output, making it an ideal choice for residential, commercial, and industrial applications.
- N-Type Cell Technology: The use of N-type cells enhances the efficiency and longevity of the module.
- Durable Double Glass Design: The double glass construction provides enhanced durability, improving resistance to environmental stresses such as moisture, dust, and temperature fluctuations.
- Bifacial Technology: With bifacial panels, this solar module captures sunlight on both the front and rear sides.
Note: 1200mm landscape cable included
Product Warranty: 12 year
Linear Power Output Warranty: 30 year
Specifications
- Weight: 33 kg
- Rated Power: 605 W
- MCS Reference: BABT 8515-341-605W
- Dimensions: 2,333 × 1,134 × 30 mm
- VMPP: 43.94 V | IMPP: 13.71 A
- Isc: 14.53 A | Voc: 52.6 V
- Temperature Coefficient (Mpp): -0.29%
- Clamp Position: Long side only
- Connector Type: Round Post | Connector Description: EVO2
- Pallet Size: Oversized
