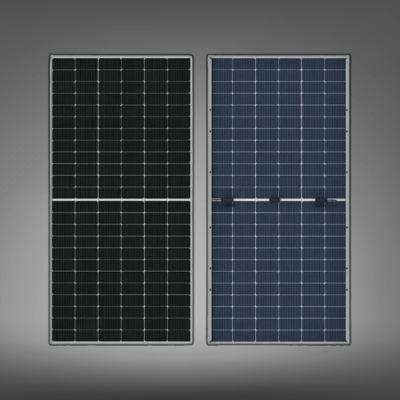

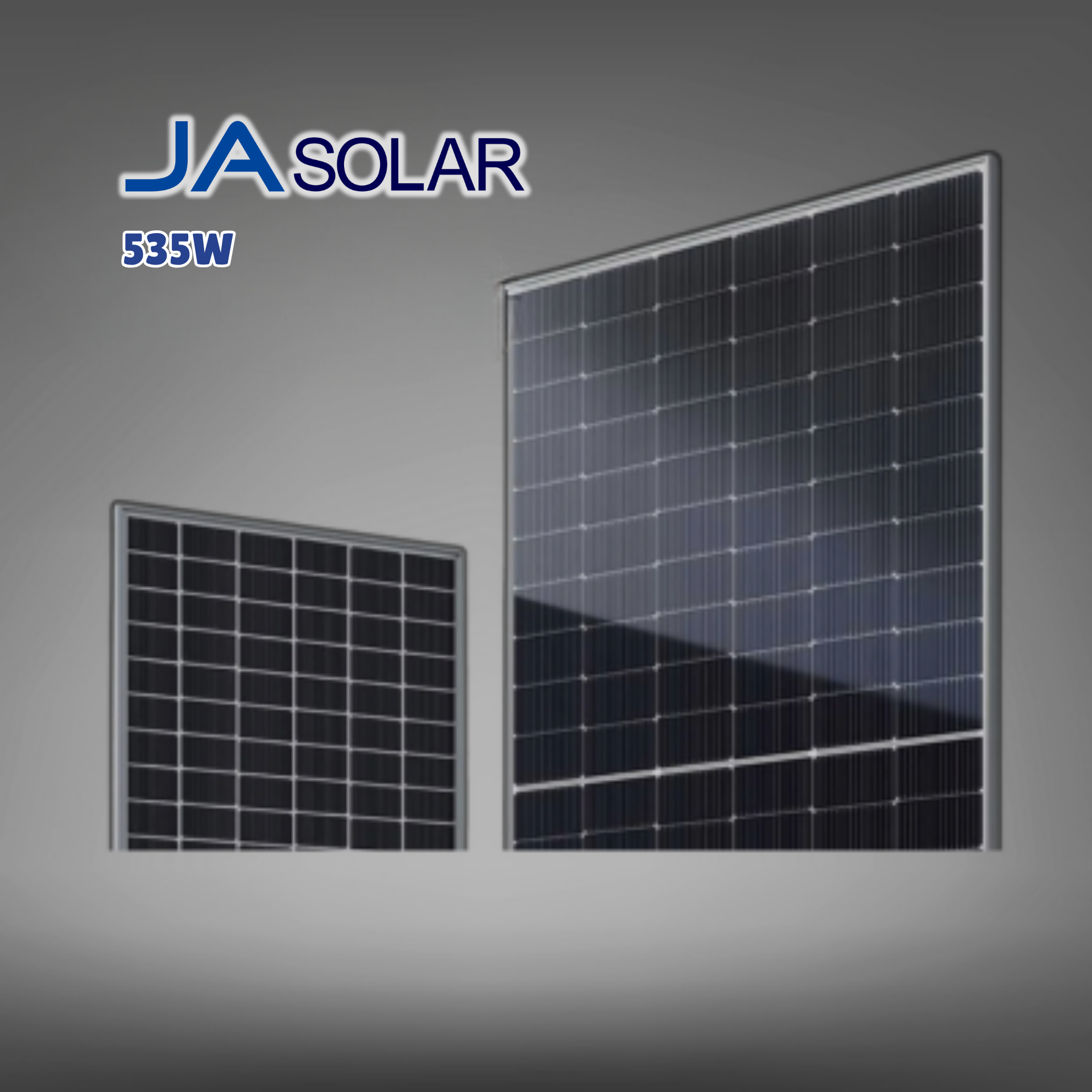

535W JA Solar | N-type Bifacial | Double Glass MBB Traceable | Black Frame

535W JA Solar | N-type Bifacial | Double Glass MBB Traceable | Black Frame

JA Solar

SKU:JAM60D-42-535-LB-TS-BF

Quantity
Regular price £79.00 GBP
Regular price Sale price £79.00 GBP
Sale Sold out
View full details

535W JA Solar | N-type Bifacial | Double Glass MBB Traceable | Black Frame

The 535W N-type TOPCon bifacial solar panel delivers exceptional performance, long-term reliability, and improved energy yields for commercial and large-scale rooftop or ground-mount PV systems. Built using advanced N-type TOPCon multi-busbar cell technology, this module achieves higher efficiency, lower degradation, and superior performance in challenging environmental conditions.

Its double-glass bifacial design enables additional rear-side energy generation from reflected light, improving overall system output and lowering the levelised cost of energy (LCOE). The robust black-frame construction and MC4 connectors ensure compatibility with modern mounting systems and inverters.

    Features

    Cell Type: N-type TOPCon, 60-cell

    Bifacial: Yes

    Frame Colour: Black



    Warranty

    25-year product warranty

    30-year linear power output warranty


    Downloads

    JA Solar 535W Datasheet

    JA Solar 535W Declaration of Conformity

    JA Solar 535W Installation Manual

    JA Solar 535W Ltd Warranty

    Specification

    Weight: 28.8kg

    Rated Power: 535W

    Length: 2.063 mm

    Width: 1,134 mm

    Depth: 30 mm

    VMPP: 37.03 V

    IMPP: 14.45 A

    Isc: 15.31 A

    Voc: 44.13 V

    Temp. Coefficient (Mpp): -0.29 %

    Connector Description: EVO2A

    Efficiency: 22.9 %
