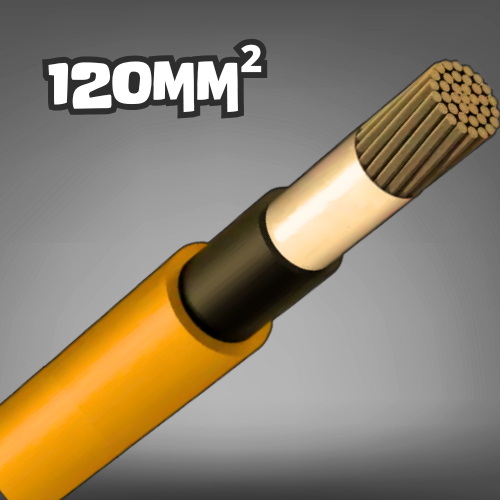

120mm² Cable /meter

120mm² cable per meter, Class 6 multi-stranded extra flexible tinned copper conductor, 850A rated for 5mins @ 100% Duty cycle

Conductor diameter approx 12.4mm, Overall diameter including sheath 21.5mm

Cables are manufactured in accordance with BS 638 Part 4 & EN 50525-2-81. It has a rubber compound to achieve the 85deg temp rating to meet all the requirements of EM5, that allows the cable to achieve the increased current carrying capacity.
